Nachi

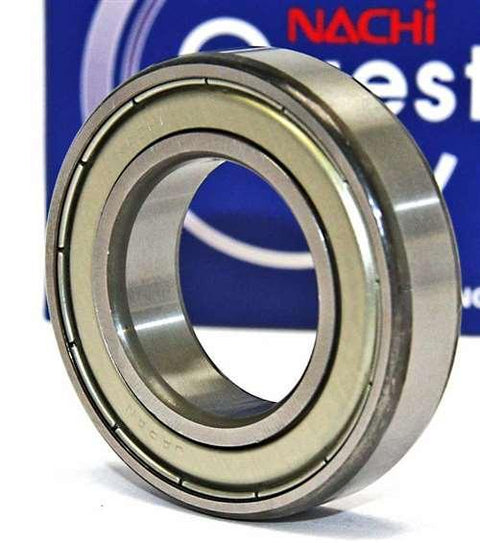

6217ZZE Nachi Bearing Shielded C3 Japan 85x150x28

$157.99
SKU: Kit9577
UPC: 00193019102176
Item: 6217ZZE Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields Z/ZZ/2Z
Radial Clearance: C3
Dimensions: 85mm x 150mm x 28mm/Metric
6217ZZE Nachi Bearing
85mm x 150mm x 28mm
Made in Japan

6217ZZE Nachi Bearing, the 6217ZZE inner diameter is 85mm, the 6217ZZE outer diameter is 150mm, 6217ZZE width is 28mm.

  • Item: 6217ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Radial Clearance: C3
  • Dimensions: 85mm x 150mm x 28mm/Metric
  • ID (inner diameter)/Bore: 85mm
  • OD (outer diameter): 150mm
  • Width/Height/thickness: 28mm
  • Size: 85 x 150 x 28 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 84,000 N
  • Static load rating Cor: 62,000 N
  • Limiting Speed:
    • Grease Lubrication: 4,300 RPM
  • Equivalents: 217KDD, 217SS, 6217.2ZR, 217SFF, 6217-2Z and 6217ZZE
  • Made in Japan

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
