Nachi

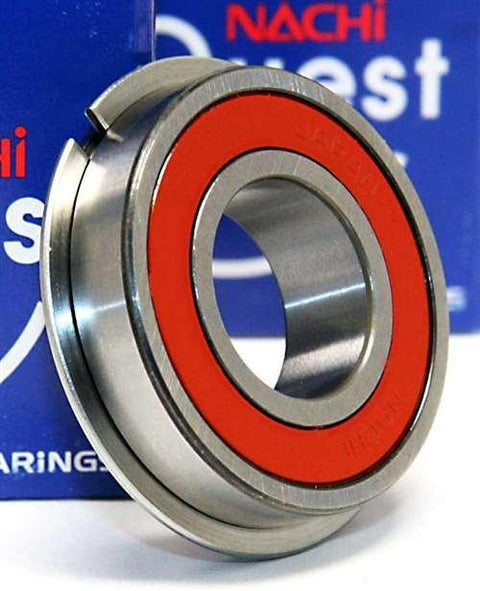

6209-2NSE9NR Nachi Bearing Sealed C3 Snap Ring Japan 45x85x19 Bearings

No reviews
$59.99
SKU: Kit13405
UPC: 00193019095324
Item: 6209-2NSE9NR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double sealed rubber seals RS/RS1/2RS1
Radial Clearance: C3
Dimensions: 45mm x 85mm x 19mm/Metric
6209-2NSE9NR Nachi Bearing With Snap Ring (C clip)
45mm x 85mm x 19mm
Made in Japan


6209-2NSE9NR Nachi Bearing with a Snap Ring, the 6209-2NSE9NR inner diameter is 45mm, the 6209-2NSE9NR outer diameter is 85mm, 6209-2NSE9NR width is 19mm.

  • Item: 6209-2NSE9NR Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double sealed rubber seals RS/RS1/2RS1
  • Radial Clearance: C3
  • Dimensions: 45mm x 85mm x 19mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 85mm
  • Width/Height/thickness: 19mm
  • Size: 45 x 85 x 19 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 32,500 N
  • Static load rating Cor: 20,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,300 RPM
  • Made in Japan

Advanced Seal Design Provides
Excellent Protection and Smooth Operation

The combination of a unique lip design and seal groove provides a labrinth and steady seal contact.Breathing mechanism avoids torque increases caused byinternal pressure variation due to changes in operating temperatures.NSE seals allow NACHI bearings to have constant smooth operation and long service life.

  • Superior in Sealing Out Dust, Dirt, and Contamination
  • Superb Grease Retention
  • Light Torque
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
