6203ZZENR Nachi Bearing 17x40x12 Shielded C3 Snap Ring Japan Bearings

$19.99
SKU: Kit9642
UPC: 00193019102770
Item: 6203ZZENR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearings
Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
Radial Clearance: C3
Dimensions: 17mm x 40mm x 12mm/Metric

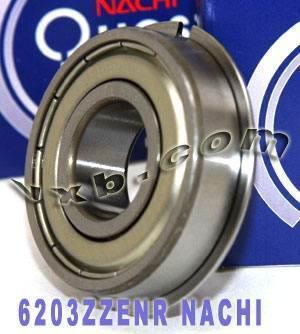

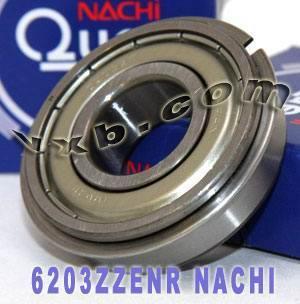

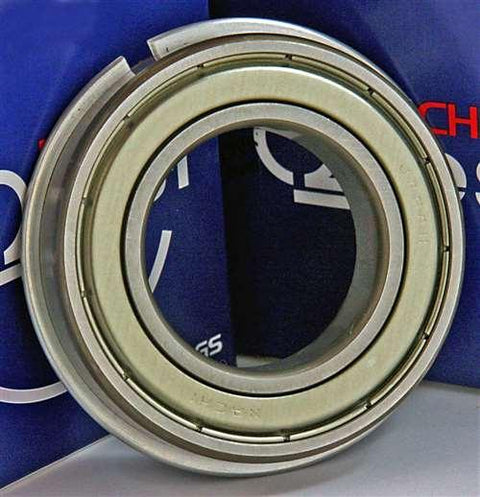

6203ZZENR Nachi Bearing
With Snap Ring (C clip)
17mm x 40mm x 12mm
Made in Japan

6203ZZENR Nachi Bearing with a Snap Ring, Made in Japan, inner diameter is 17mm, outer diameter is 40mm and width is 12mm.

  • Item: 6203ZZENR Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearings
  • Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
  • Radial Clearance: C3
  • Dimensions: 17mm x 40mm x 12mm/Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter D1): 40mm
  • Width/Height/thickness: 12mm
  • Size: 17mm x 40mm x 12mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 9,550 N
  • Static load rating Cor: 4,800 N
  • Limiting Speed:
    • Grease Lubrication: 18,000 RPM
  • Made in Japan
  • Equal: 6203 ZZ / 6203 2Z

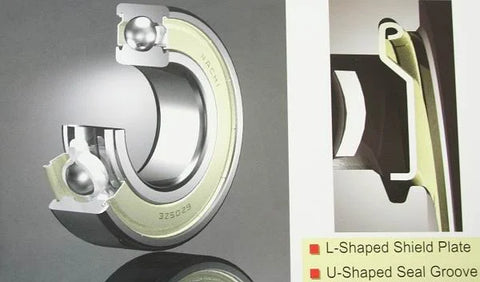

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
