Nachi

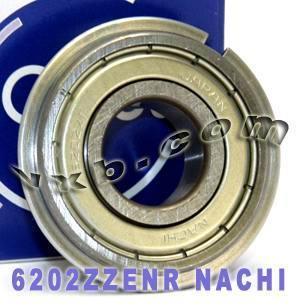

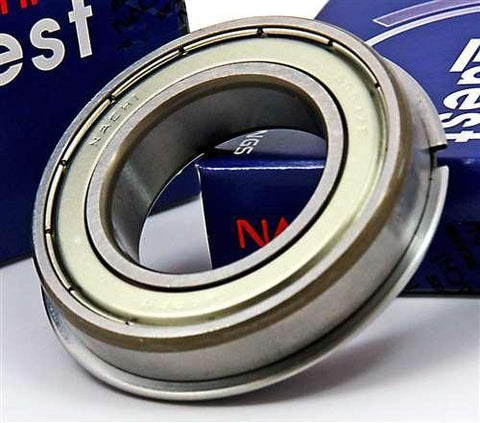

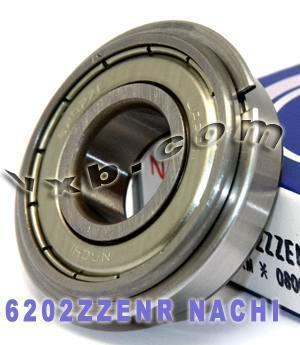

6202ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 15x35x11 Bearings

$19.99
SKU: Kit9641
UPC: 00193019102763
Item: 6202ZZENR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
Radial Clearance: C3
Equal: 6202 ZZ / 6202 2Z
6202ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan


6202ZZENR Nachi Bearing with a Snap Ring, the 6202ZZENR inner diameter is 15mm, the 6202ZZENR outer diameter is 35mm, 6202ZZENR width is 11mm.

  • Item: 6202ZZENR Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
  • Radial Clearance: C3
  • Equal: 6202 ZZ / 6202 2Z
  • Dimensions: 15mm x 35mm x 11mm/Metric
  • ID (inner diameter)/Bore: 15mm
  • OD (outer diameter): 35mm
  • Width/Height/thickness: 11mm
  • Size: 15 x 35 x 11 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 7,650 N
  • Static load rating Cor: 3,700 N
  • Limiting Speed:
    • Grease Lubrication: 20,000 RPM
  • Made in Japan

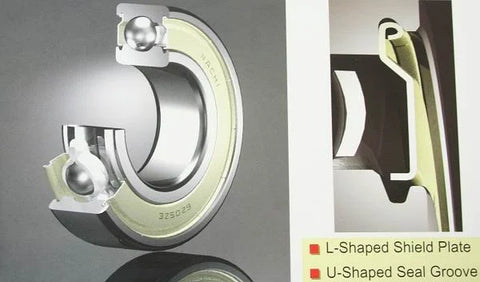

Advanced Shield Design Provides
Superior Protection and Quiet Operation

The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
