61mm Diameter Handwheel Pulse Generator For CNC Machines, 4 Pin 5V, 100 Pulse, 4Pin VCC 0V A B, 6Pin A B With Minus A Minus B, Manual Rotary Encoder, Easy Setup And 24V Compatible
✔️ 61mm dia handwheel, 4-pin/6-pin options, 5V-24V ready
The 61mm diameter handwheel pulse generator is a metal rotary encoder accessory used with CNC machines to deliver precise manual control and pulse feedback. It supports both 4-pin (VCC, 0V, A, B) and 6-pin (VCC, 0V, A, B, -A, -B) interfaces and is compatible with voltages from 5V up to 24V. Common in mills, routers, and automated setups, this handwheel makes jogging and positioning easier and more reliable. Model numbers include ZC61-5L100B, 5E100B, 24E25B, and 24E100B.

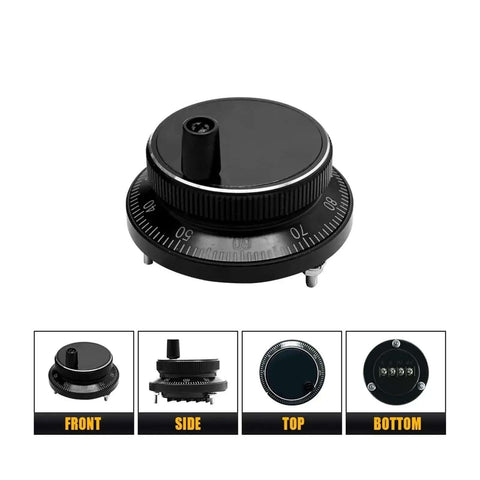

✅ 61mm diameter metal handwheel, black finish
✅ 4 Pin: VCC, 0V, A, B
✅ 6 Pin: VCC, 0V, A, B, -A, -B
✅ Pulses: 25 and 100 pulse options
✅ Voltage: 5V; 5V-24V compatible
💡 What is a handwheel pulse generator used for in CNC machines? It's handy for precise manual control and axis feedback. - Handwheel input for fine jogging and positioning - Works with 4-pin and 6-pin interfaces - Supports 25 or 100 pulse resolutions - Durable metal construction, 61mm diameter
✝️
