VXB
60mm Bearing HCFL212 2 Bolts Flanged Cast Housing Mounted Bearing with Eccentric Collar Lock
$110.99
SKU: HCFL212
UPC: 00193019200346
UPC: 00193019200346
Item: HCFL212 Bearing
Type: Flanged Mounted Bearing with Eccentric Collar
Bolt Size: M16
Basic Load Dynamic (Cr): 47,7000 N
Basic Load Static (Cor): 32,900 N
Type: Flanged Mounted Bearing with Eccentric Collar
Bolt Size: M16
Basic Load Dynamic (Cr): 47,7000 N
Basic Load Static (Cor): 32,900 N
| HCFL212 Mounted Bearing with Eccentric Collar Lock 60mm Inner Diameter |
|
HCFL212 mounted bearing. The inner diameter is 60mm.
|

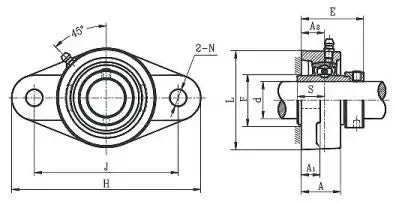

| Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | L | A2 | A1 | A | E | N | S | F min. | |
| 60mm | 250 | 202.0 | 140 | 34 | 21 | 53 | 80.8 | 30.9 | 30.9 | 77 | |
