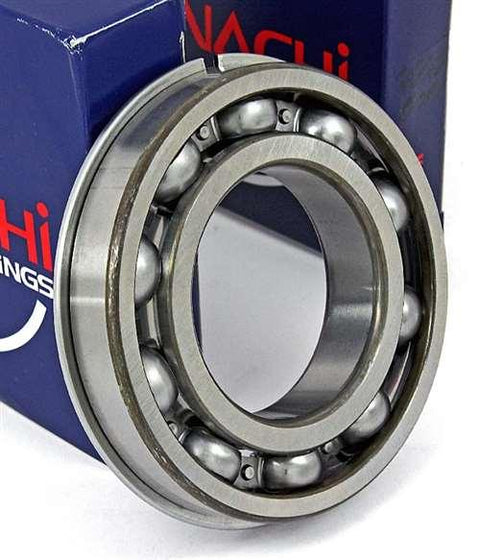

6022NR Nachi Bearing Open C3 Snap Ring Japan 110x170x28 Large Bearings
Type: Nachi Deep groove Ball Bearing
Radial Clearance: C3
Dimensions: 110mm x 170mm x 28mm/Metric
ID (inner diameter)/Bore: 110mm
|6022NR Nachi Bearing|
110mm x 170mm x 28mm
With Snap Ring (C clip)
Made in Japan
6022NR Nachi Bearing with a Snap Ring, Made in Japan. the 6022NR inner diameter is 110mm, the 6022NR outer diameter is 170mm, 6022NR width is 28mm.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. Deep Groove ball bearings having an outside diameter less than 9 mm are known as Miniature ball bearings. Deep Groove ball bearings having an outside diameter => 9 mm and a bore diameter < 10 mm are known as extra-small ball bearings. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operating at very high speed or for large diameter bearings. Deep groove ball bearings with seals or shields are standardized. They contain proper amount of grease in advance.
