Nachi

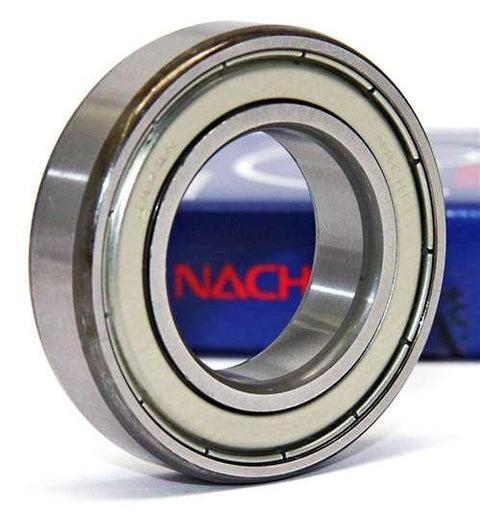

6020ZZE Nachi Bearing Shielded C3 Japan 100x150x24 Large

$200.99
SKU: Kit9550
UPC: 00193019101919
Item: 6020ZZE Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Radial Clearance: C3
Closures: Double shielded with Metal shields Z/ZZ/2Z
Dimensions: 100mm x 150mm x 24mm/Metric
6020ZZE Nachi Bearing
One Bearing
Made in Japan


6020ZZE Nachi Bearing, the 6020ZZE inner diameter is 100mm, the 6020ZZE outer diameter is 150mm, 6020ZZE width is 24mm.

  • Item: 6020ZZE Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearing
  • Radial Clearance: C3
  • Closures: Double shielded with Metal shields Z/ZZ/2Z
  • Dimensions: 100mm x 150mm x 24mm/Metric
  • ID (inner diameter)/Bore: 100mm
  • OD (outer diameter): 150mm
  • Width/Height/thickness: 24mm
  • Size: 100 x 150 x 24 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 60000 N
  • Static load rating Cor: 54000 N
  • Limiting Speed:
    • Grease Lubrication: 4300 RPM
  • Equal: 6020 ZZ / 6020 2Z
  • Made in Japan

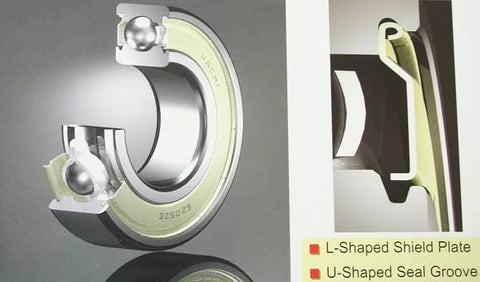

Advanced Shield Design Provides
Superior Protection and Quiet Operation

The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made of select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
