Nachi

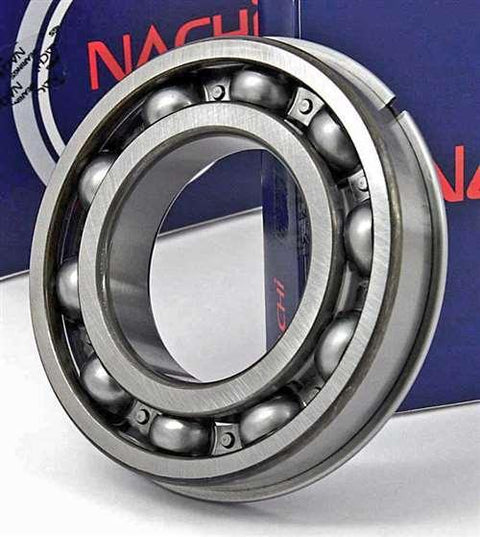

6010NR Nachi Bearing Open C3 Snap Ring Japan 50x80x16

$49.99
SKU: Kit12614
UPC: 00193019093290
Item: 6010NR Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearings
Radial Clearance: C3
Dimensions: 50mm x 80mm x 16mm/Metric
Size: 50mm x 80mm x 16mm
6010NR
Nachi Bearing
With Snap Ring (C clip)
50mm x 80mm x 16mm
Made in Japan


6010NR Nachi Bearing, Made in Japan, with a Snap Ring, the 6010NR inner diameter is 50mm, the 6010NR outer diameter is 80mm, 6010NR width is 16mm.

  • Item: 6010NR Nachi Ball Bearing
  • Type: Nachi Deep groove Ball Bearings
  • Radial Clearance: C3
  • Dimensions: 50mm x 80mm x 16mm/Metric
  • Size: 50mm x 80mm x 16mm
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 80mm
  • Width/Height/thickness: 16mm
  • Quantity: One Bearing
  • Made in Japan

Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a widevariety of seal, shield and snap-ring arrangements. The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make pointcontact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as theouter ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, thisbearing type can be produced to provide both high-running accuracy and high-speed operation. Deep Groove ball bearings having an outside diameter less than 9 mm are known as Miniature ball bearings.
