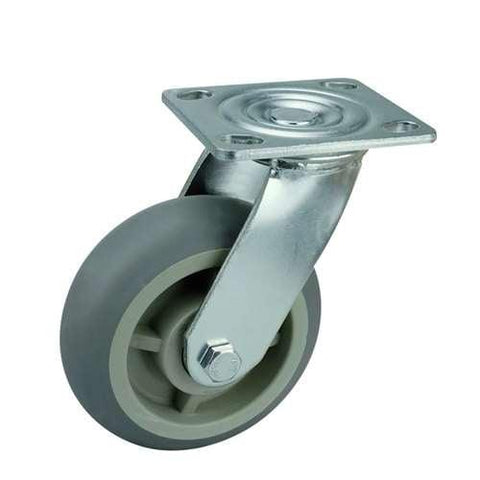

6" Inch Heavy Duty Caster Wheel 617 pounds Swivel Polypropylene core and Thermoplastic Rubber Top Plate

$159.99
SKU: VXB005150ATPR
Wheel Diameter= 6" Inch" inch=150mm
Load Capacity=617 lb
Mounting Type= Top Plate
Mounting= Swivel
Tire= Polypropylene core and Thermoplastic Rubber
6" Inch Caster Wheel 617 pounds Swivel Polypropylene core and Thermoplastic Rubber Top Plate
  • Item Name= VXB005150ATPR
  • Heavy Duty
  • Wheel Diameter= 150mm
  • Wheel Width= 50mm
  • Wheel Diameter= 6" Inch = 150mm
  • Overall Height= 195mm
  • Overall Height Inch= 7.677"
  • Mounting Type= Top Plate
  • Top Plate Size= 100mm x 115mm
  • Hole distance= 75mm x 85mm
  • Wheel Core= Polypropylene core and Thermoplastic Rubber
  • Tire= Polypropylene core and Thermoplastic Rubber
  • Bearing type= Double ball beaing
  • Load Capacity= 617 lb
  • Mounting= Swivel
  • Temperature Range= -40 to 180 F

  • Utilizing VXB005150ATPR makes it feasible to pull and push items instead of transport And rolling on wheel that has 150mm diameter/5.906" inch. The wheel has a width of 50mm=1.969" inch. Overall height of the wheel caster is 195mm = 7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. Low drag was achieved by a Polypropylene core and Thermoplastic Rubber core on a Polypropylene core and Thermoplastic Rubber tire spinning freely with a Double ball beaing. Each caster will carry the load of 617 lb and is Swivel type. Temperature range is -40 to 180 F. Very important notice, you need to buy the VXB005150ATPR in order to get one :).
