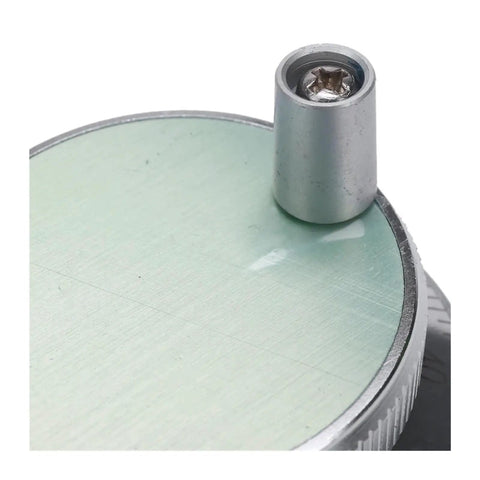

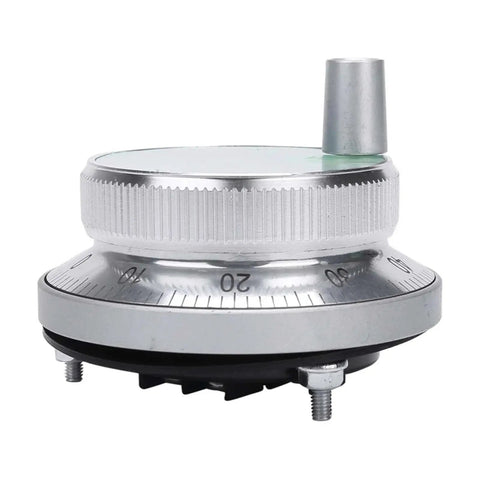

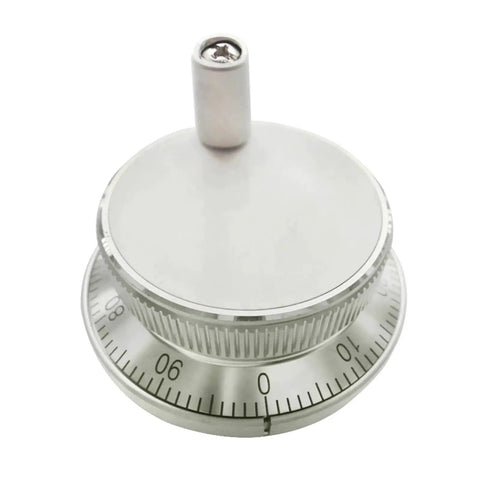

5V CNC Pulse Generator Handwheel Kit for CNC Machines, Manual Pulse Generator Hand Wheel with Rotary Encoder, Electronic Hand Wheel, Silver 60mm Diameter, 100 PPR, 6 Pin Connector, Vcc and 0V, A Plus A Minus, B Plus B Minus
✔️ 5V, 60mm/80mm silver handwheel, 100 PPR, 6-pin Vcc/0V, A+/A-, B+/B-
This is a manual pulse generator handwheel designed for CNC machines. It provides precise jogging and positioning by turning the wheel, commonly used on milling machines, routers, and hobby CNC setups.
✅ 5V operation for direct compatibility with common CNC controllers.
✅ 60mm diameter option (also available in 80mm) for versatile mounting.
✅ 100 PPR rotary encoder for precise incremental movement.

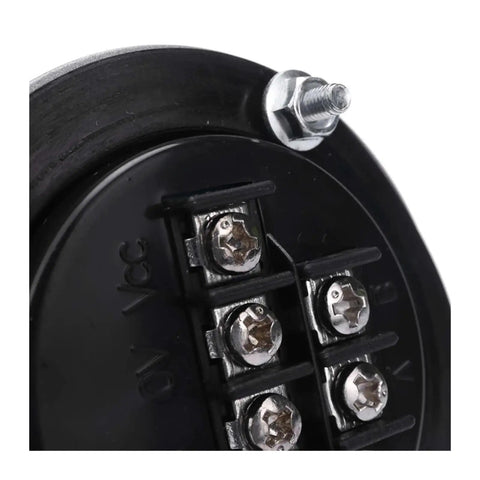

✅ 6-pin connector: Vcc, 0V, A+, A-, B+, B-.
✅ Silver metal handwheel for durable operation.
💡 What is a handwheel pulse generator used for in CNC setups? A handy control to manually jog CNC axes for precise positioning.
- handwheel pulse generator basics in CNC machining
- benefits of a 5V encoder handwheel for hobby and light industrial use
- wiring tips for 6-pin handwheel connectors in CNC controllers
