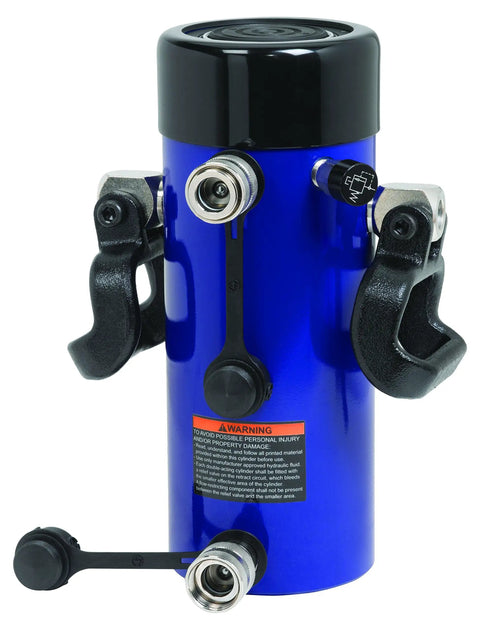

55 Ton Double Acting Hydraulic Cylinder With 20 Inch Stroke, Heavy Duty Steel Build, 6CD55T20, Blue Or Red Finish, High Flow 3/8 NPTF Couplers, One Piece Alloy Bearing For Side Load Protection, Ready For Pushing And Pulling Big Loads
✔️ Single unit, blue or red finish, 10,000 psi, 20 in stroke
This heavy-duty double-acting hydraulic cylinder delivers 55 ton of push/pull force with a 20-inch stroke. Built from high-strength steel, it is ideal for pushing and pulling large loads in industrial, manufacturing, and rigging environments.
✅ 55.7 ton push and 16.2 ton max cylinder capacity
✅ Stroke 20.12 in
✅ Push area 10.99 in²; cylinder effective area 3.19 in²
✅ Oil capacity: 221.09 in³ (push); 64.24 in³ (pull)
✅ Bore 3.74 in; outside diameter 5.00 in; plunger diameter 3.14 in
✅ Saddle diameter 2.76 in; base to advance port 2.48 in; top to return port 2.87 in
✅ Plunger internal thread 1 in to 12 in; thread length 0.98 in; collar thread length 1.73 in
✅ High-flow 3/8 in NPTF couplers; one-piece alloy bearing for side load protection
💡 What is a heavy-duty hydraulic cylinder used for in push-pull applications in industrial settings?
Here's a quick, practical overview:
- Used to generate strong linear force to move large loads in industrial lines. - Common in manufacturing, construction, and material handling where space is tight. - High-flow options and side-load protection extend service life and performance.
