5312-2NS Nachi 2 Rows Angular Contact Bearing 60x130x54 Bearings

$310.59 $345.10you save $34.51
SKU: Kit13510
UPC: 00193019096185
Item: 5312-2NS Nachi Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Double Sealed
Dimensions: 60mm x 130mm x 54mm/Metric
ID (inner diameter)/Bore: 60mm
5312-2NS Nachi Angular Ball Bearing
Double Sealed
60mm x 130mm x 54mm
Made in Japan

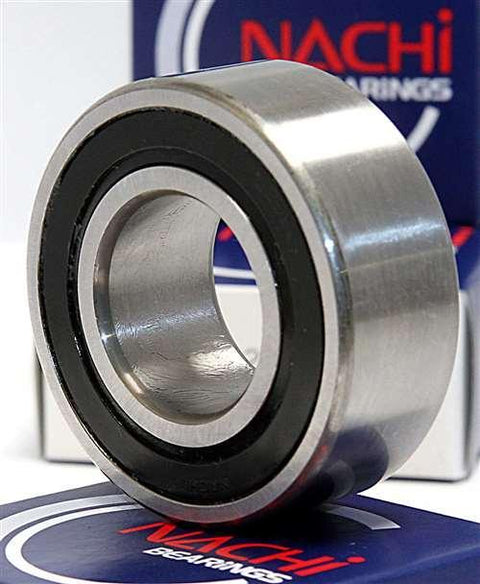

5312-2NS Nachi Double Row Angular Ball Bearing, bearing is Double Sealed, Made in Japan, inner diameter is 60mm, outer diameter is 130mm and width is 54mm.

  • Item: 5312-2NS Nachi Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Double Sealed
  • Dimensions: 60mm x 130mm x 54mm/Metric
  • ID (inner diameter)/Bore: 60mm
  • OD (outer diameter): 130mm
  • Width/Height/thickness: 54mm
  • Size: 60 x 130 x 54 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 128,000 N
  • Static load rating Cor: 101,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,800 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
