Nachi

5211 Nachi 2 Rows Angular Contact Bearing 55x100x33.3 Japan Bearings

No reviews
$107.88
SKU: Kit10053
Item: 5211 Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Open
Dimensions: 55mm x 100mm x 33.3mm/Metric
ID (inner diameter)/Bore: 55mm

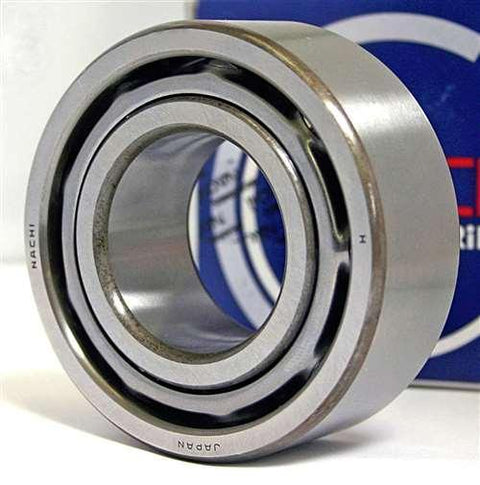

5211 Nachi Double Row Angular Ball Bearing
55mm x 100mm x 33.3mm
Made in Japan


5211 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 55mm, outer diameter is 100mm and width is 33.3mm.

  • Item: 5211 Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 55mm x 100mm x 33.3mm/Metric
  • ID (inner diameter)/Bore: 55mm
  • OD (outer diameter): 100mm
  • Width/Height/thickness: 33.3mm
  • Size: 55 x 100 x 33.3 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 67,500 N
  • Static load rating Cor: 56,500 N
  • Limiting Speed:
    • Grease Lubrication: 4,500 RPM
    • Oil Lubrication: 6,300 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
