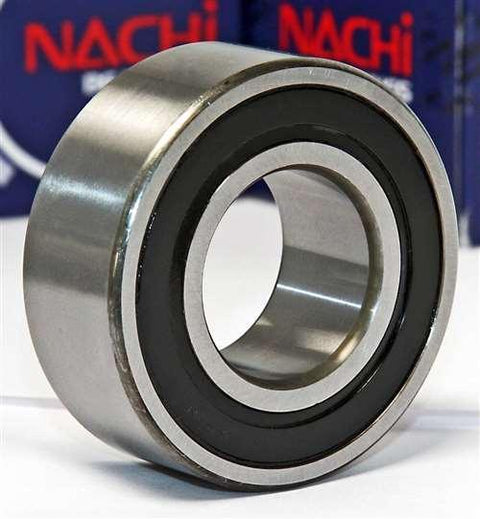

5209-2NS Nachi 2 Rows Angular Contact Bearing 45x85x30.2 Bearings

No reviews
$124.88
SKU: Kit13505
Item: 5209-2NS Nachi Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Double Sealed
Dimensions: 45mm x 85mm x 30.2mm/Metric
ID (inner diameter)/Bore: 45mm

5209-2NS Nachi Angular Ball Bearing
Double Sealed
45mm x 85mm x 30.2mm
Made in Japan


5209-2NS Nachi Double Row Angular Ball Bearing, bearing is Double Sealed, Made in Japan, inner diameter is 45mm, outer diameter is 85mm and width is 30.2mm.

  • Item: 5209-2NS Nachi Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Double Sealed
  • Dimensions: 45mm x 85mm x 30.2mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter D1): 85mm
  • Width/Height/thickness: 30.2mm
  • Size: 10 x 32 x 30.2 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 42,500 N
  • Static load rating Cor: 34,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,500 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
