Nachi

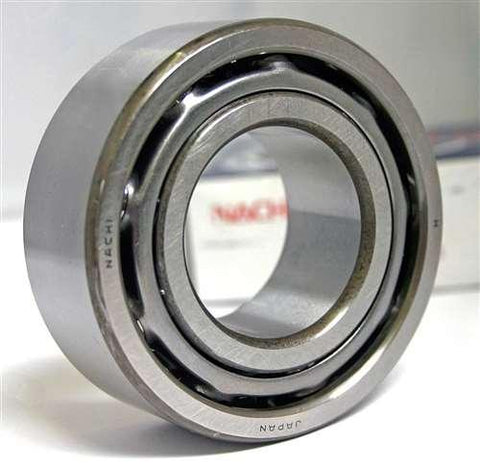

5202 Nachi 2 Rows Angular Contact Bearing 15x35x15.9 Japan Bearings

$35.99
SKU: Kit13507
UPC: 00193019096154
Item: 5202 Ball Bearing
Type: Nachi Double Row Angular Ball Bearing
Closures: Open
Dimensions: 15mm x 35mm x 15.9mm/Metric
ID (inner diameter)/Bore: 15mm

5202 Nachi Double Row Angular Ball Bearing
15mm x 35mm x 15.9mm
Made in Japan

5202 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 15mm, outer diameter is 35mm and width is 15.9mm.

  • Item: 5202 Ball Bearing
  • Type: Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 15mm x 35mm x 15.9mm/Metric
  • ID (inner diameter)/Bore: 15mm
  • OD (outer diameter): 35mm
  • Width/Height/thickness: 15.9mm
  • Size: 15 x 35 x 15.9 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 11,900 N
  • Static load rating Cor: 7,200 N
  • Limiting Speed:
    • Grease Lubrication: 14,000 RPM
    • Oil Lubrication: 19,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
