Thrust Ball Bearing 45mm x 85mm x 28mm 1 Ball Bearing, Precision Axial Load Bearing In Durable 52100 Alloy Steel, High Capacity For Machinery, Automotive And Industrial Equipment, Smooth Rotation And Long Service Life
Title
Regular price
$70.00
Sale price$140.00you save $70.00
SKU: 51309
UPC: 00193019350324
UPC: 00193019350324

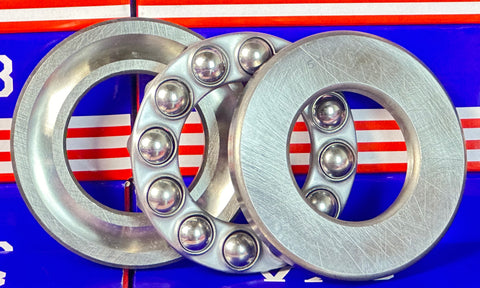

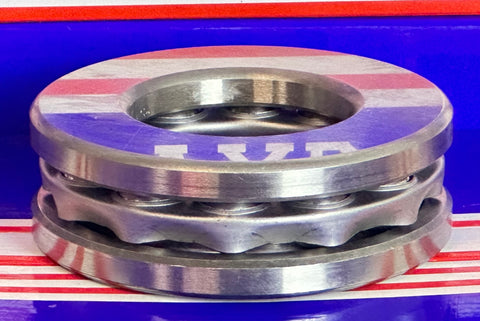

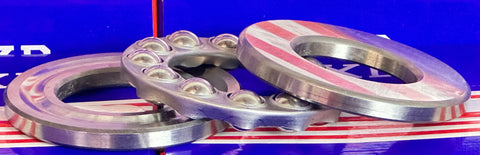

51309 Thrust Ball Bearing 45x85x28 mm single unit
✔️ Bore 45 mm, outer 85 mm, width 28 mm, 1 bearing, 52100 steel
✔️ Bore 45 mm, outer 85 mm, width 28 mm, 1 bearing, 52100 steel
The 51309 thrust ball bearing is designed to take axial loads in machines that push or pull along the shaft. It’s a common fit for presses, conveyors, and rotary assemblies where vertical forces dominate. This single bearing measures 45 mm bore, 85 mm outer diameter, and 28 mm width for straightforward installation.
✅ Inner bore: 45 mm
✅ Outer diameter: 85 mm
✅ Width: 28 mm
✅ Dynamic load Cr: 78,900 N
✅ Static load Cor: 164,000 N
✅ Material: chrome steel 52100
✅ Lubrication: grease up to 1,000 RPM, oil up to 2,000 RPM
✅ Quantity: 1 bearing
💡 What is a thrust ball bearing used for in axial load applications and how do you pick the right one?
Choosing the right axial bearing depends on load, speed, lubrication, and operating environment.
- High axial load handling for vertical shaft forces - Fits compact housings with precise axial alignment - Lubrication choice (grease or oil) affects life and performance - Ensure correct bore size: 45 mm, outer 85 mm, width 28 mm
