51224 Single Thrust Ball Bearing 120x170x39mm

SKU: 51224

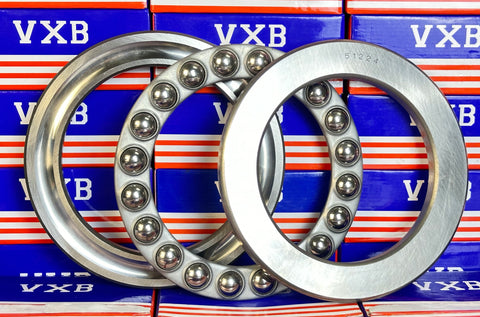

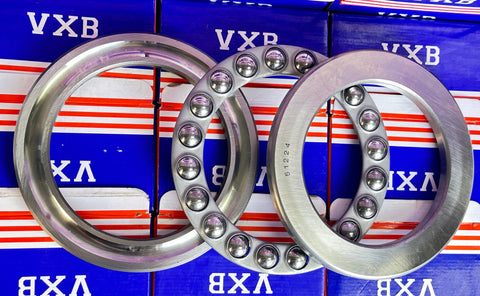

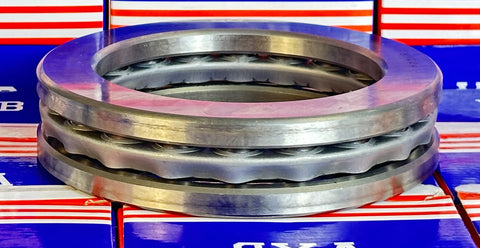

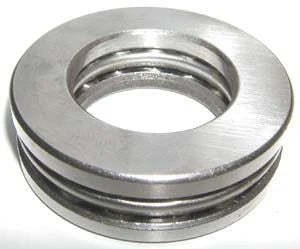

51224 Thrust Ball Bearing
120mm x170mm x39mm
One Ball Bearing

51224 Thrust Ball bearing, this is a popular size that could be used in many application that use this size 120mm x170mm x39mm. Thrust bearing is known to high axial or Vertical loads. Bearing is made of Chrome Steel.

  • Item: 51224 Ball Bearing
  • Type: Thrust Ball Bearing
  • Dimensions: 120mm x170mm x39mm/Metric
  • ID (inner diameter)/Bore: 120mm
  • OD (outer diameter): 170mm
  • Width/Height/thickness: 39mm
  • Size: 120mm x170mm x39mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 170,000 N
  • Static load rating Cor: 509,000 N
  • Limiting Speed:
    • Grease Lubrication: 1,000 RPM
    • Oil Lubrication: 2,000 RPM
