50mm Effective Travel Length Mini Linear Rail Guide Lead Screw T6x1 with NEMA11 Stepper Motor for DIY/CNC Router Parts X Y Z Linear Stage Actuator

50mm Travel Mini Linear Rail and NEMA11 Motor: 50 mm Effective Travel, T6x1 Lead Screw for DIY CNC Router Linear Stage (1x Pack)
✔️ Ready-to-install linear stage with 50 mm travel and 126 mm total length for compact builds

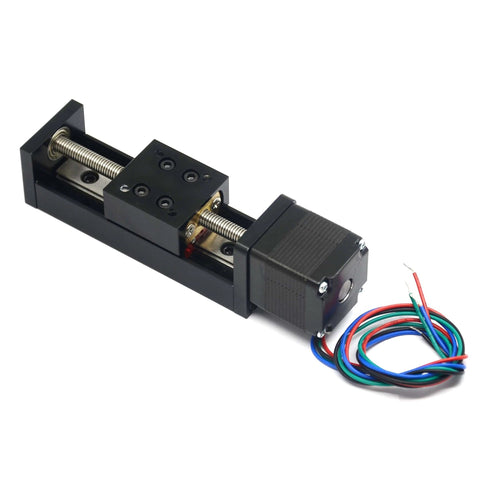

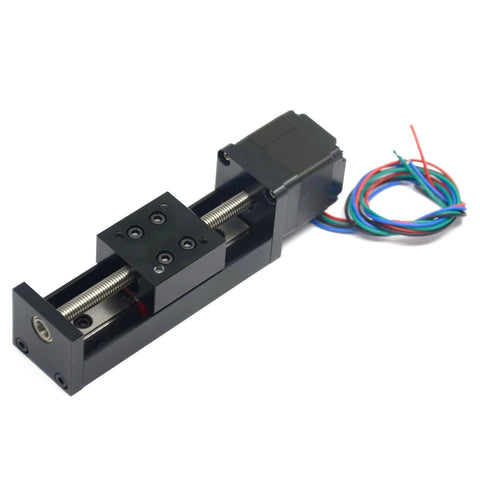

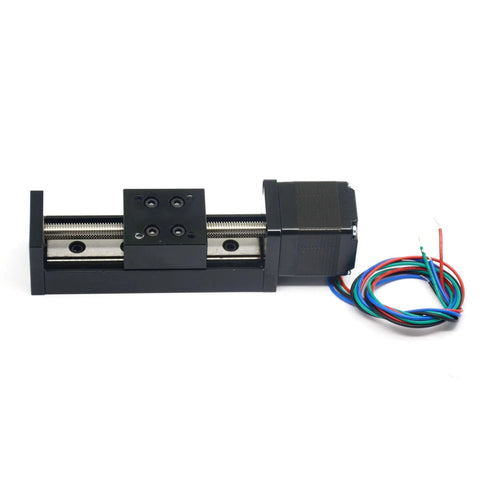

This compact linear stage combines a 50 mm travel rail, a 6 mm diameter lead screw with 1 mm pitch, and a NEMA11 stepper motor, designed for precise positional control in DIY CNC routers, laser engravers, and automated positioning setups. Pack size: 1 piece.
✅ Horizontal max load: 2.5 kg; Vertical max load: 1 kg
✅ Repeat positioning accuracy: ±0.05 mm
✅ Speed: 0-120 mm/min
✅ Motor size: 28x28x30 mm; Voltage: DC 24V; Current: 0.5A; Step angle: 1.8 degrees
✅ Effective travel: 50 mm; Lead screw: T6x1 (Ø6 mm, pitch 1 mm)
✅ Motor parameter: Step angle 1.8 degrees; Flange size 28 mm; Length 30 mm; Holding torque 6 N·cm; Resistance 5.5 ohm; Inductance 3.2 mH; Rotor inertia 8 g·cm

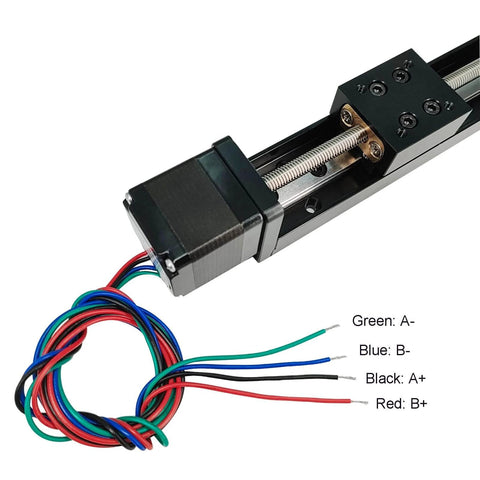

✅ Lead wire: 4 conductors (A+, A−, B+, B−)

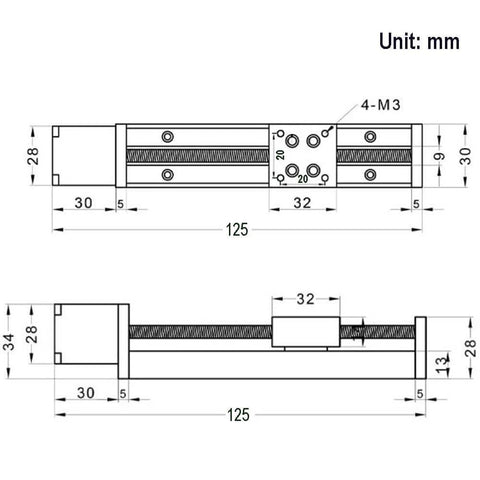

✅ Linear stage parameters: Effective travel 50 mm; Total length 126 mm; Type: linear stage moulde; Weight 272 g
✅ Package Content: 1 pcs Linear Stage Actuator with NEMA11 Stepper Motor

Effective Travel: 50 mm
Total length: 126 mm
Lead Screw: T6x1 (Ø6 mm, pitch 1 mm)
Motor size: 28x28x30 mm
Weight: 272 g

💡 Q&A

💡 How can I integrate this 50 mm travel mini linear rail with a T6x1 lead screw and a NEMA11 stepper into a compact DIY CNC router for precise X Y Z positioning, and what practical considerations affect alignment, backlash, and drive choice in a tight workspace?

This setup is designed for straightforward mounting on standard X, Y, and Z axes with a compatible driver and controller.

- Ensure you have a suitable 24V driver that supports the motor current of 0.5A and offers microstepping for smoother motion

- Precisely align mounting holes and rails to maintain perpendicularity and minimize backlash in all axes

- Plan homing with end stops within the 50 mm travel range to prevent overrun and to simplify calibration

- Remember the lead screw moves 1 mm per turn; with a 200-step/rev motor at 1x, you get about 200 steps per millimeter (microstepping will increase resolution), which affects step calibration and motion accuracy
