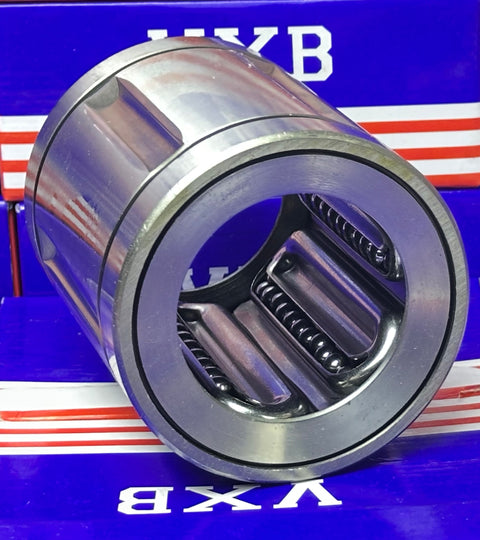

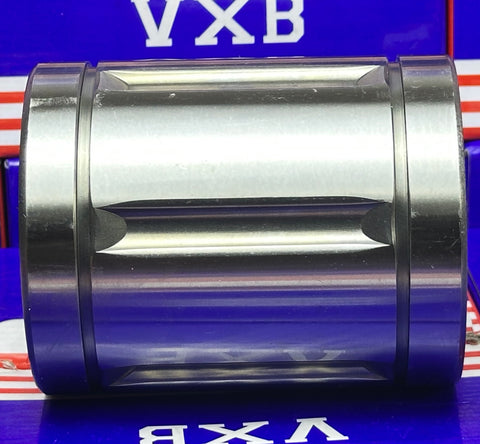

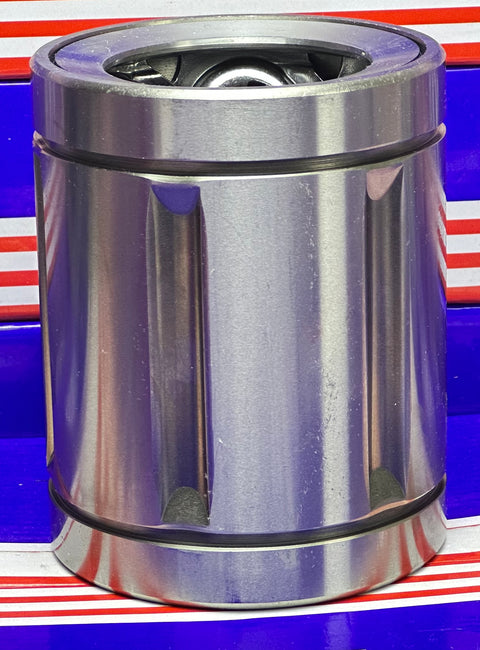

50mm Ball Bushing SDM50GA Steel Retainer Linear Motion Bearings
$98.99
SKU: Kit12235
UPC: 00193019208694
UPC: 00193019208694
Item: SDM50GA Bearing
Type: Linear Ball Bushing
Ball circuit: 6
Size: 50mm x 80mm x 100mm
Bearing Inner Diameter: 50mm
Type: Linear Ball Bushing
Ball circuit: 6
Size: 50mm x 80mm x 100mm
Bearing Inner Diameter: 50mm
| Linear Ball Bushing SDM50GA Works with 50mm Shafts 50mm x 80mm x 100mm |
SDM50GA Linear Ball Bushing works with a 50mm Shafts, the inner Diameter is 50mm, the outer Diameter is 80mm and the Length is 100mm.
|
|
|
|
(mm) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | L | B | W | D1 | h1 | Precision (mm) |
High (mm) |
||||||
| mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | |||||||
| Precision | High | |||||||||||||
| 50 | 0-8 | 0-12 | 80 | 0-19 | 100 | 0-300 | 74 | 0-300 | 2.6 | 76.5 | 25 | 12 | 20 | -13 |
