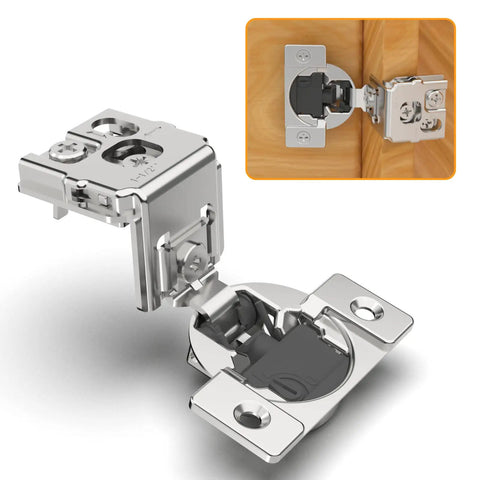

50 Pack 1-1/2 Inch Overlay Concealed Cabinet Hinges With Soft Close, 105 Degree Open, Satin Nickel Stainless Steel, Face Frame Doors, 4D Adjustable Closing Speed, Includes Easy-On Dowels And Self-Tapping Screws
These concealed overlay cabinet hinges hide behind the cabinet face to deliver a clean, hidden look on face-frame doors. They’re ideal for kitchen, bathroom, and closet cabinets where quiet closing and long-term durability matter.

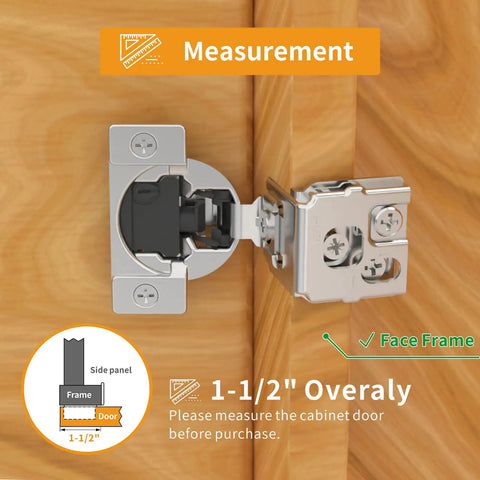

✅ Overlay: 1-1/2 inch (38.1 mm) for face-frame doors
✅ Cup diameter: 35 mm; cup depth: 11.5 mm
✅ Screw hole distance: 45 mm

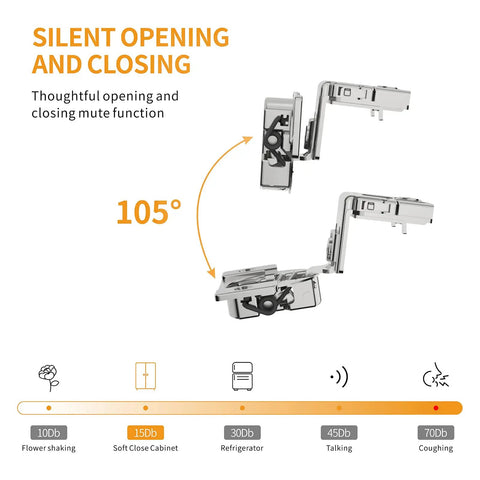

✅ Open angle: 105 degrees

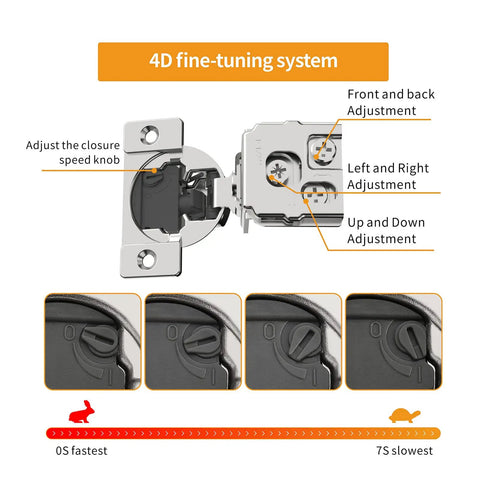

✅ 4D adjustable: vertical, horizontal, depth, closing speed (0-7 s)
✅ Includes 2 easy-on dowels and 3 self-tapping screws per hinge

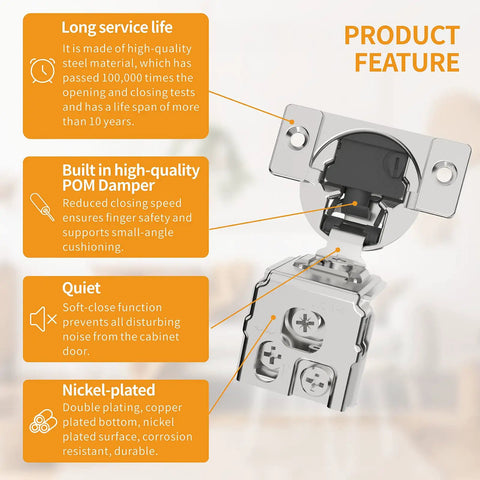

✅ Double electroplated steel with nickel finish and brass bottom
💡 What is a concealed overlay cabinet hinge used for in face-frame kitchen cabinets with soft close dampers?
This hinge is handy for a clean look and quiet operation.
- 4D adjustable for precise alignment
- Built-in POM damper provides soft-closing action
- Includes easy-on dowels and self-tapping screws
