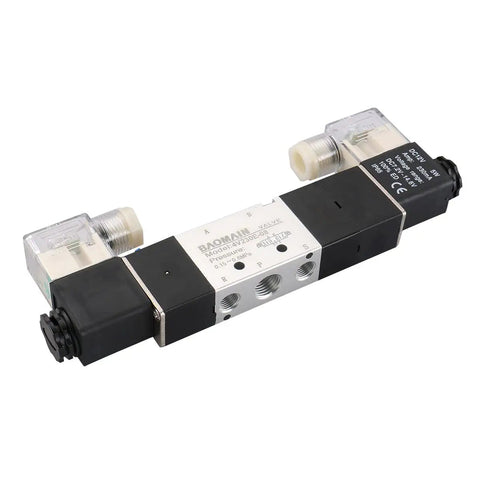

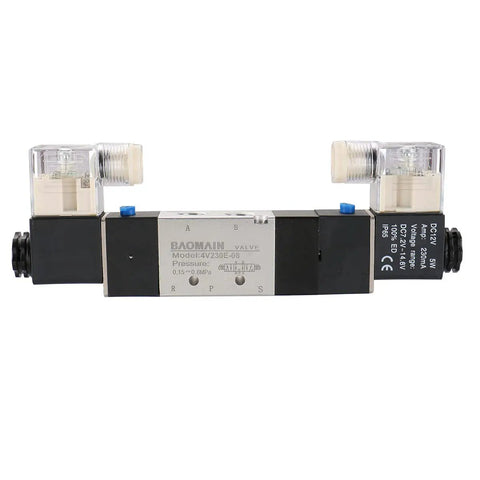

5 Way 3 Position Pneumatic Solenoid Valve With Exhaust Center Function, Double Coil Air Control Valve, DC 12V, Quarter Inch Ports, Internally Piloted, IP65 Rated, Workhorse Rugged Valve For Smooth Actuator Motion

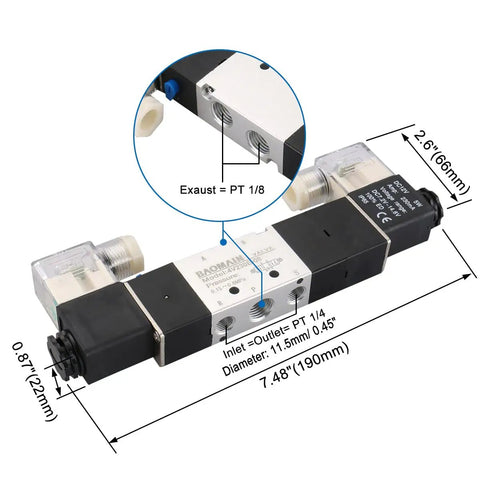

✔️ DC12V dual coils, IP65 rated, PT 1/4 in inlet/outlet (6.35 mm), exhaust PT 1/8 in (3.175 mm)
The single unit valve is built for rugged automation tasks, ideal for CNC machines and pneumatic power systems where reliable actuation and safe idle positioning matter.
✅ Exhaust Center logic vents both A and B to atmosphere in the neutral state to prevent pressure buildup and allow easy manual repositioning
✅ IP65 aluminum body protects against dust and moisture while delivering a fast response time around 0.05 seconds
✅ Port connections: inlet/outlet PT 1/4 in (6.35 mm), exhaust PT 1/8 in (3.175 mm); seals ensure gas tight performance up to 0.8 MPa (116 PSI)
✅ DC 12V dual coils with internal pilot operation for high flow and frequent switching

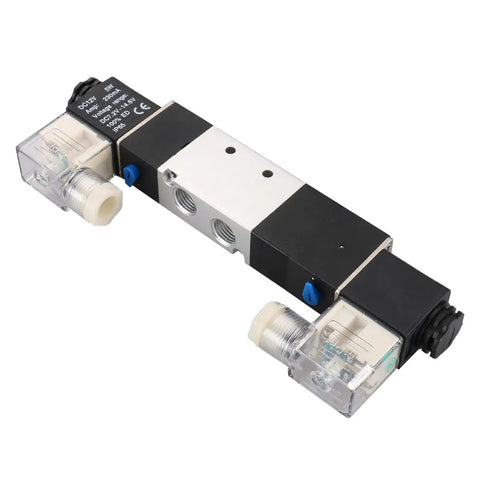

✅ Transparent DIN connectors enable quick wiring and easy status viewing
💡 What is a five way three position pneumatic valve used for in automation and CNC machinery?
In general, it's a handy device for directing air to actuators and providing a safe neutral exhaust when idle.
- Directs air to double-acting cylinders to control motion - Provides exhaust center function to vent both ports for manual repositioning - Supports fast switching with dual DC 12V coils for reliable operation
