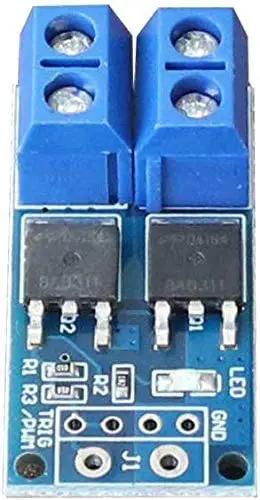

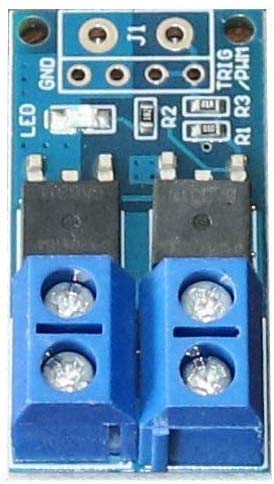

5 Piece 400W Dual High Power MOSFET Trigger Switch Drive Module With 15A Continuous Current 30A Peak For 5V To 36V DC 0 To 20KHz PWM Electronic Switch Control Board For DIY Motor Speed And Lamp Brightness Control

5-Piece PWM MOSFET Trigger Switch Drive Module
✔️ 5V-36V input, PWM control up to 20kHz, 15A continuous / 30A peak

This compact PWM switch drive module is designed to power high-current devices from 5 to 36V DC. It's ideal for DIY projects such as motor speed control, lamp brightness adjustment, LED strip dimming, and other load control tasks where precise PWM is needed.

✅ 5 pieces per pack for multi-project builds
✅ Operating voltage 5V-36V DC; continuous current 15A; 400W rating; 30A peak with cooling
✅ Trigger input accepts digital high/low signals (3.3V-20V) and PWM at 0-20kHz
✅ Dual MOS parallel output lowers on-resistance for heavy loads
✅ Compact size 1.34 x 0.7 x 0.5 in (34.0 x 17.8 x 12.7 mm); temp range -40 to 85 C
✅ Applications include motors, bulbs, LED strips, micro pumps, solenoids

💡 What is a PWM trigger switch module used for in high power motor and lighting projects?

A handy way to power control by PWM to motors and lights, allowing smooth speed and brightness changes.

• Compatible with 5 V to 36 V DC supplies and PWM signals up to 20 kHz
• Delivers 15 A continuous current, with 30 A peak possible when cooled
• Dual MOS parallel output lowers resistance for heavy loads

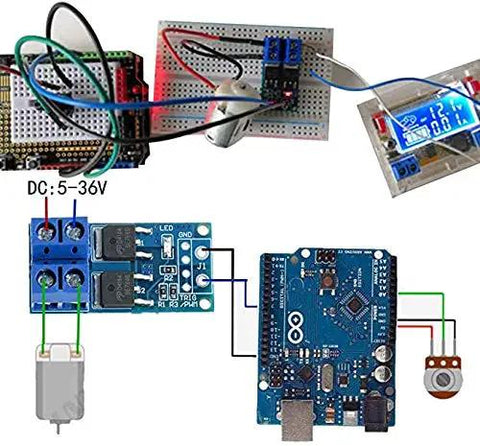

• Simple to connect to microcontrollers, PLCs, or DC power supplies
