5 Pack Nema 17 Stepper Motors 2 Phase 1.8 Degree High Torque Bipolar 0.41 Nm 58 Oz In 40 mm Body 1.5 A 2.0 Ohm 4 Wire Shaft 24 mm 5 mm Cable 1M For 3D Printer DIY Robot CNC Machine

NEMA 17 high-torque stepper motor pack for printers
✔️ 5-pack, 2-phase, 1.8°, 0.41 Nm torque, 1.5A, 40mm body

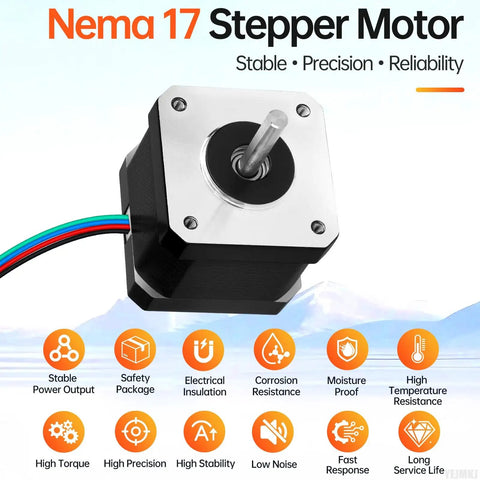

These compact NEMA 17 two-phase stepper motors deliver precise motion for 3D printers, CNC rigs, and DIY robotics. The 42x42x40 mm body with 31 mm mounting holes keeps installation neat. See dimensions table for mounting and wiring details.

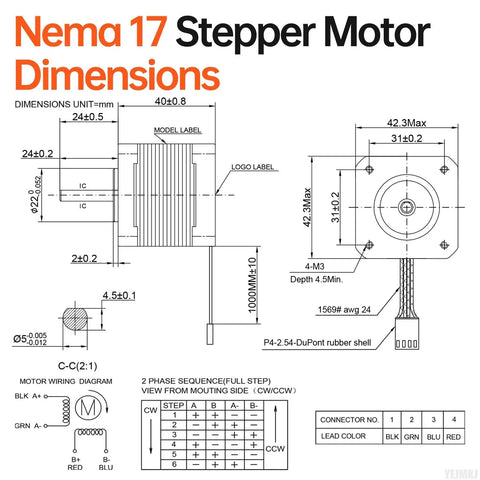

Dimension	Metric	Inches
Body (L×W×H)	42×42×40 mm	1.66×1.66×1.58 in
Shaft diameter	φ5 mm	0.197 in
Shaft length	24±0.5 mm	0.94 in
D-cut length	24 mm	0.94 in
Mounting hole distance	31 mm	1.22 in
Cable length	1 m	3.28 ft

✅ Holding torque 0.41 Nm (58 oz-in), 2-phase bipolar drive
✅ Step angle 1.8° (200 steps/rev), rated current 1.5 A
✅ Coil resistance 2.0 Ω, inductance ~3.8 mH
✅ Body size 42x42x40 mm, shaft φ5 mm, shaft length 24 mm
✅ 1 m cable, 4-wire color code: Black A+, Green A-, Red B+, Blue B-
✅ Weight ~295 g per motor (5-pack)

💡 What is a NEMA 17 stepper motor used for in hobby projects? This handy drive is a common go-to for precise motion in small machines. Handy for 3D printers, small CNCs, and robotics. Works with common drivers like A4988 and DRV8825. Provides consistent torque with microstepping for smoother motion.
