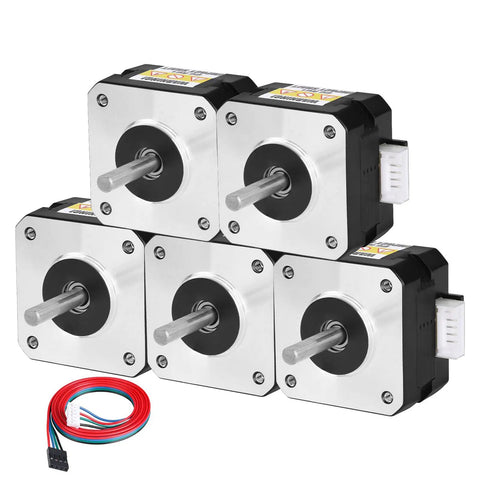

5 Pack Nema 17 Stepper Motors 2 Phase 1.8 Degree Dope High Torque Bipolar 0.26Nm 4-Wire 1M Cable Shaft 5mm 24mm 42x42x25.5mm 31mm Mounting For 3D Printers DIY CNC Robots
✔️ 0.26Nm holding torque, 1.8° step, 2.0A, 4-wire, 1m cable
Five-pack NEMA 17 stepper motors provide compact, reliable motion control for hobby CNC machines, 3D printers, and robotics. Each unit is a 2-phase bipolar design with a 1.8-degree step angle and 0.26Nm holding torque, paired with a 1 m cable for easy wiring.
✅ NEMA 17, 2-phase bipolar, 1.8° step angle (200 steps/rev)
✅ Holding torque 0.26Nm (36.82 oz-in)

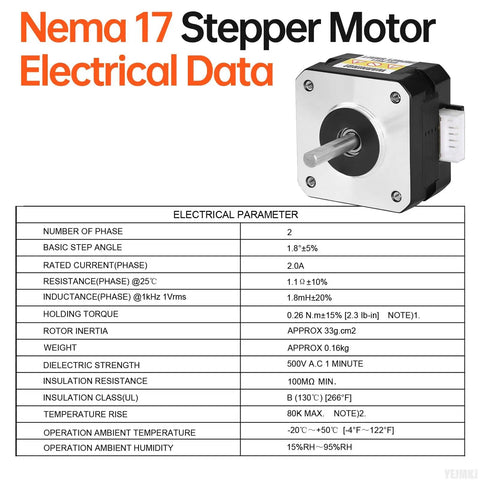

✅ Coil resistance 1.1Ω, rated current 2.0A, inductance 1.8mH ±20%

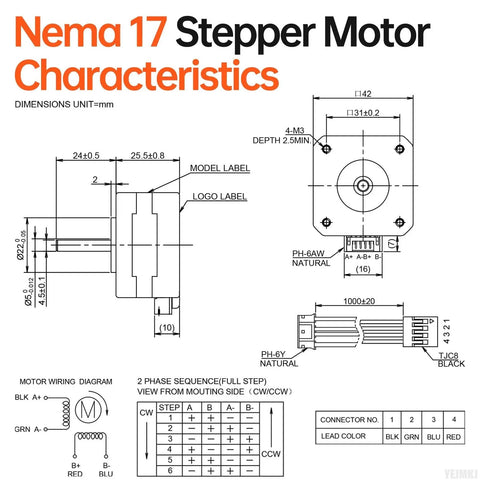

✅ Body size 42x42x25.5mm, shaft Ø5mm, shaft length 24±0.5mm
✅ Mounting hole distance 31mm, D-cut length 24mm
✅ Cable length 1m, 4-wire (A+ A- B+ B-)
✅ Weight 171g, temperature range -20°C to 50°C, insulation class B
✅ Operation recommended 0-600 RPM for best torque
💡 What is a NEMA 17 stepper motor used for in hobby CNC and 3D printer projects?
A handy intro: It’s a go-to motor for precise, controlled motion in tight spots across DIY builds.
- 2-phase bipolar drive compatibility with standard motion controllers
- 1.8° step angle delivers smooth positioning for printers and small mills
- Compact 42x42x25.5mm footprint fits tight enclosures and brackets
- 1 m cable and 4-wire wiring simplify installation and routing
