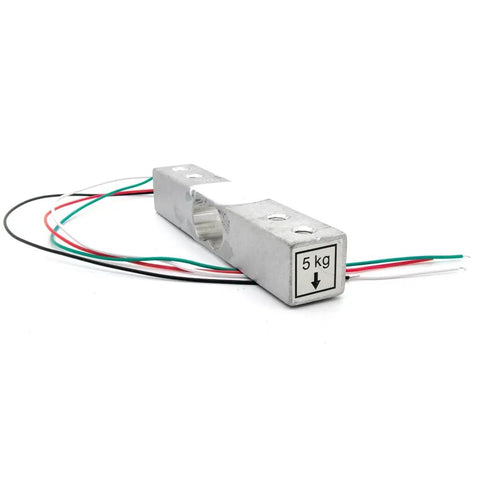

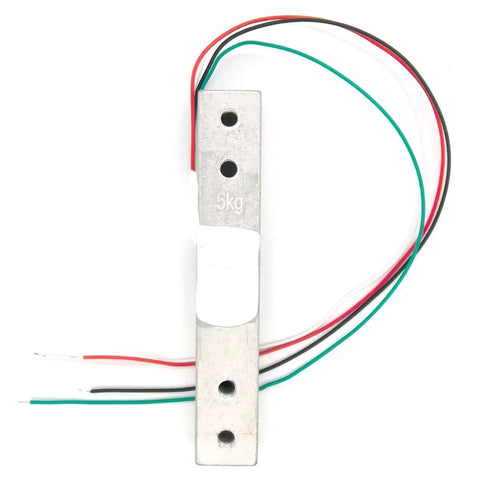

5 Kg Straight Bar Load Cell With Hook For Accurate Weight And Force Readouts In DIY And Industrial Setups 4 Wire Strain Gauge Sensor Ready For Tension Measurement Plug And Play Pro Grade

5kg Load Cell with Hook for Precise Tension Sensing ✔️ 5KG max, 1.0mV/V output, 3-9VDC, 75x12.7x12.7mm size

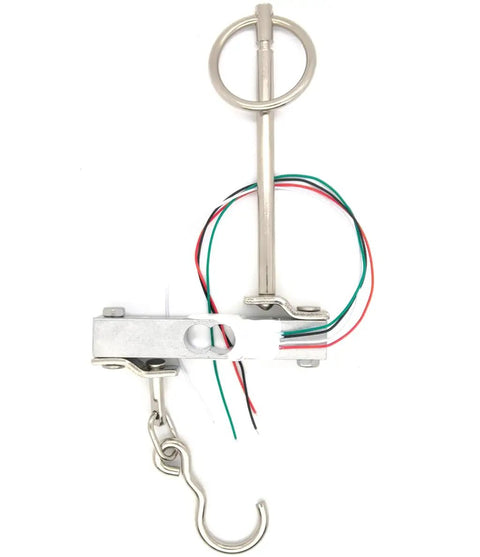

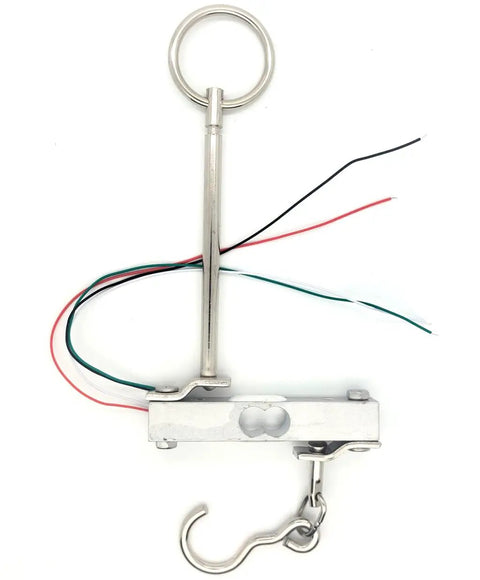

This straight bar load cell is an aluminum alloy strain gauge sensor with hook hardware for hanging setups. It turns up to 5 kg of force into an electrical signal and sees use in DIY builds plus industrial spots for weight pressure force and tension checks.

✅ Maximum capacity 5KG
✅ Rated output 1.0 plus or minus 0.1mV/V
✅ Excitation voltage 3 to 9VDC
✅ Size 75mm by 12.7mm by 12.7mm
✅ Four wire hook up red green black white

💡 What is a strain gauge load cell used for in force monitoring setups? A strain gauge load cell turns mechanical force into a readable electrical signal for steady measurements. - It fits hanging arrangements thanks to the built in hook design. - Users get reliable tension data after simple calibration with known weights. - The 4 wire setup works with common excitation ranges for clean signal output. - Handy in both hobby projects and shop floor force checks without extra converters.

✝️
