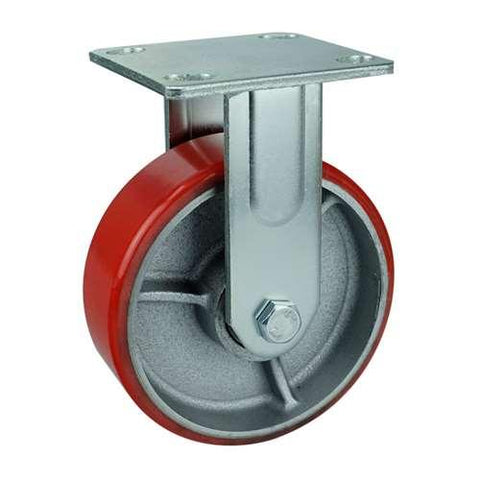

5" Inch Heavy Duty Caster Wheel 661 pounds Fixed Iron core and Polyurethane Top Plate
Load Capacity=661 lb
Mounting Type= Top Plate
Mounting= Fixed
Tire= Iron core and Polyurethane
Mounting VXB005125ACPUF is the Low cost solution of making a project to move around by pushing or pulling. And rolling on wheel that has 125mm diameter/4.921" inch. The thickness of the wheel is 50mm or 1.969" inch. The Caster with the wheel from end to end is 167mm = 6.575" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 100mm x 115mm and holes distance of 75mm x 85mm. The weehl core material is Iron core and Polyurethane and has a Iron core and Polyurethane tire with a low friction Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 661 lb with a Fixed type. The caster temperature range = -40 to 180 F. Very important notice, you need to buy the VXB005125ACPUF in order to get one :).
