5.8G VTX Video Transmitter 1.6W High Power With Built In Microphone, Heat Dissipation Tech, Compact CNC Shell, Long Range RC FPV for Fixed Wing Drones, Ideal for Hobbyists and Pros

5.8G FPV VTX with 1.6W output and built-in mic, single unit

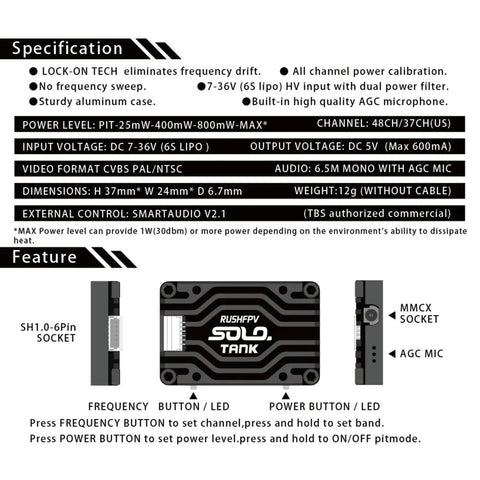

✔️ 1.6W max, 48CH, CVBS PAL/NTSC, 7-36V input, 5V 600mA out, mic

This compact video transmitter is built for FPV flight and ideal for fixed-wing drones, pairing high power with a built-in mic and a two-color CNC shell for tough environments.

✅ POWER LEVEL: PIT-25mW-400mW-800mW-1W-1.6W (MAX 1W depending on heat)
✅ CHANNEL: 48CH
✅ INPUT VOLTAGE: DC 7-36V (6S LIPO)
✅ OUTPUT VOLTAGE: DC 5V (Max 600mA)
✅ VIDEO FORMAT: CVBS PAL/NTSC
✅ AUDIO: 6.5M MONO WITH AGC MIC
✅ DIMENSIONS: H 37mm x W 24mm x D 6.7mm
✅ WEIGHT: 12g (WITHOUT CABLE)
✅ EXTERNAL CONTROL: SMARTAUDIO V2.1

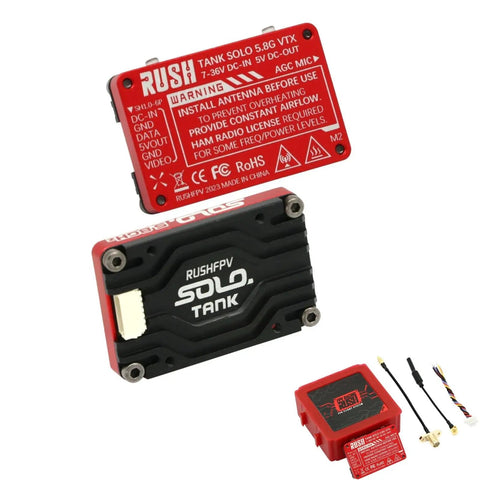

✅ PACKING LIST: Solo Image Transmission power cable MMCX to SMA adapter cable antenna

💡 What is a 5.8G VTX with built-in microphone used for in FPV drones and how does heat dissipation affect performance?

This handy device streams video and audio from the air to a ground station, and good heat management helps keep the signal solid during longer flights. - Handy for real-time video and audio transmission from the air - Heat dissipation affects power stability and video quality during long flights - Works with 7-36V input and 48 channels to support various setups - Built-in mic captures ambient sound for training or review ✝️
