4x4 Shim Tool Box Excludes Shims For Precise Motor Mounting And Alignment With 1-1/4 Inch Slot Width And 3/4 To 1-1/4 Inch Bolt Size, Compatible With NEMA Motor Frames 203 204 224 225 363 369 403-409 443-449 504-509
✔️ Slot width 1-1/4 in; bolt range 3/4-1-1/4 in; NEMA frames

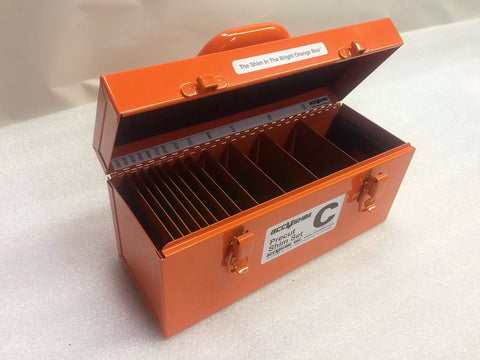

This box is a dedicated shim tool box designed to help accurately position and align motors for mounting. It is commonly used in industrial and automation settings where NEMA motor frames (203-509) are employed, ensuring proper alignment before bolts are tightened.
✅ Shim Size: C 4" x 4"
✅ Slot Width: 1-1/4"
✅ Recommended Bolt Size: 3/4" - 1-1/4"
✅ Compatibility: NEMA motor frames 203, 204, 224, 225, 363-369, 403-409, 443-449, 504-509
💡 What is a shim tool box used for in motor mounting with a 1-1/4 in slot width? This handy explanation highlights practical use and benefits. - precise motor mounting alignment for NEMA frames with 1-1/4 in slot - ensures bolt holes align within 3/4-1-1/4 in range before torquing - reduces vibration by keeping components square during operation
