4th Axis Rotary Module For Masuter 3S Xe Ultra Xe Pro CNC Router With Nema23 Closed Loop Stepper And Ten To One Reduction Gearbox For Cylindrical Wood And Metal Engraving Ac57 10

4th Axis Rotary Module for Masuter CNC Routers - Single Unit
✔️ NEMA23 closed-loop motor, 10:1 reducer, 60°/s, 4-jaw chuck

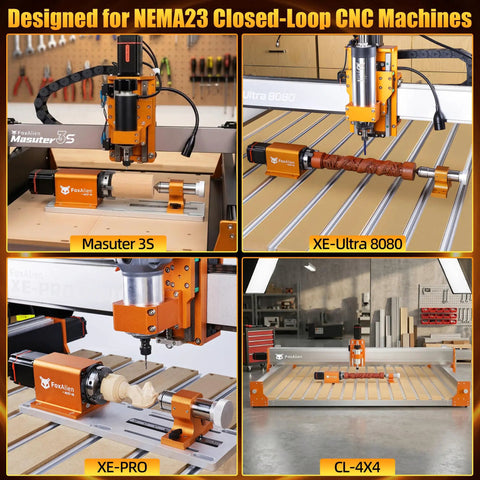

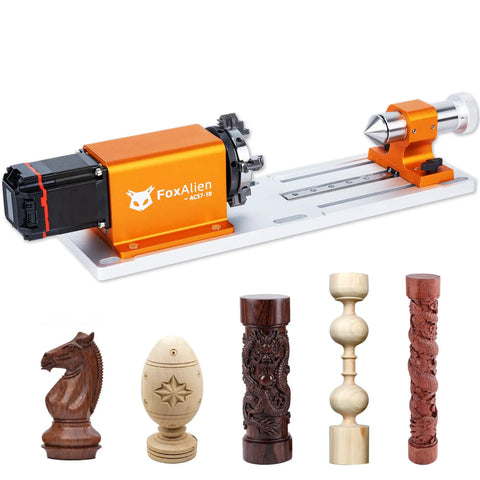

This 4-axis rotary module adds a precise rotational axis to Masuter CNC setups, enabling cylindrical wood and metal engraving and curved-surface work. Compatible with FoxAlien Masuter 3S, XE-Ultra, and Vasto V2 CL-4x4; not supported on Masuter pro, Vasto V1, or 4040XE.

✅ 4-jaw chuck for secure clamping of round or square stock

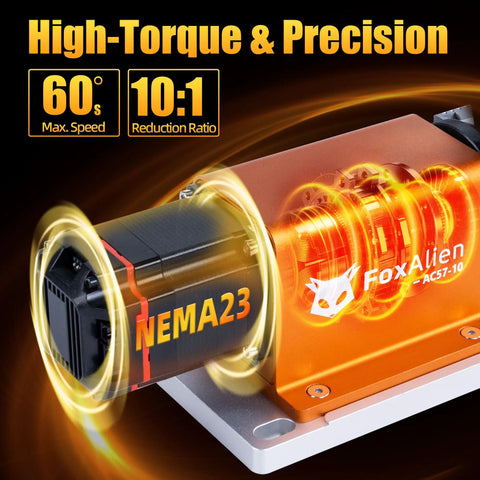

✅ 10:1 harmonic reducer provides high torque for steady engraving
✅ NEMA23 closed-loop motor for precise control
✅ Maximum rotation 60°/s for efficient engraving

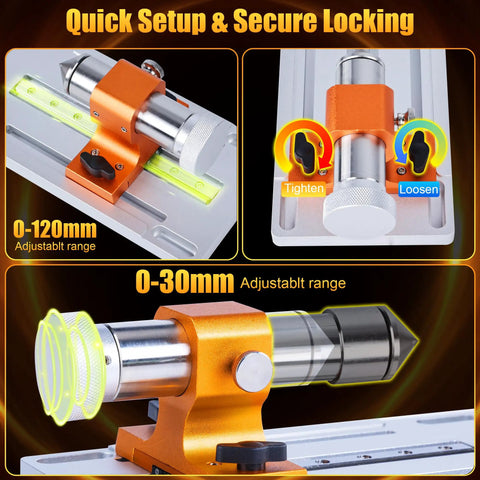

✅ Mini linear rail for easy one-handed adjustment and locking

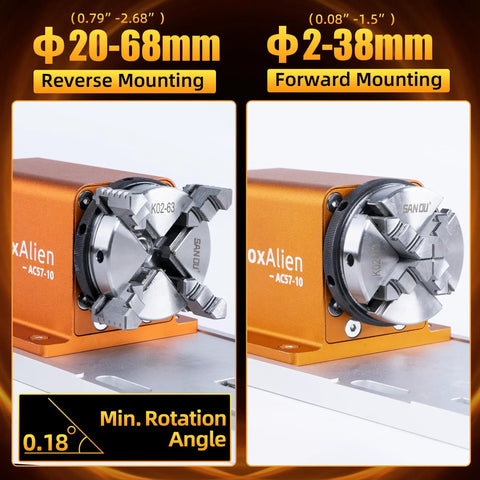

✅ Workholding range forward φ2-38 mm, reverse φ20-68 mm

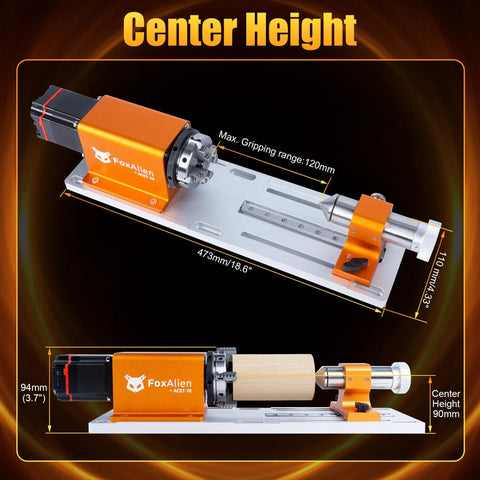

✅ Center height up to 60 mm and 0.1° resolution

Dimension	Value
Rotation speed	60°/s max
Reduction ratio	10:1
Center height	60 mm
Mounting forward	φ2-38 mm
Mounting reverse	φ20-68 mm

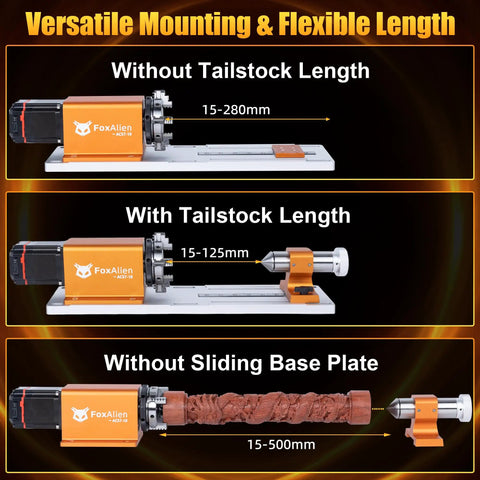

Working length range	15-500 mm
Resolution	0.1°

💡 What is a 4th axis rotary module used for in CNC engraving and milling?

It’s a handy upgrade that lets you rotate the workpiece for precise cylindrical and curved-surface engraving on compatible machines.

- Handy for cylindrical wood and metal engraving - Helps maintain consistent rotation on curved surfaces - Works with Masuter 3S XE Ultra Vasto V2 CL-4x4 and similar routers - 10:1 reducer keeps torque steady at engraving speed
