VXB
40mm Bearing HCFL208 2 Bolts Flanged Cast Housing Mounted Bearing with Eccentric Collar
$61.99
SKU: HCFL208
UPC: 00193019200209
UPC: 00193019200209
Item: HCFL208
Type: Mounted Bearing with Eccentric Collar
Bolt Size: M12
Basic Load Dynamic (Cr): 29,100 N
Basic Load Static (Cor): 17,800 N
Type: Mounted Bearing with Eccentric Collar
Bolt Size: M12
Basic Load Dynamic (Cr): 29,100 N
Basic Load Static (Cor): 17,800 N
| HCFL208 Mounted Bearing Flanged with Eccentric Collar 40mm Inner Diameter One Bearing |
HCFL208 Mounted bearing, with inner diameter of 40mm.
|

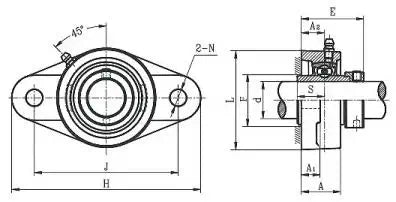

| Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 40mm | 175 | 144 | 16 | 36 | 14 | 21.4 | 56.3 | 100 | 21 |
||
