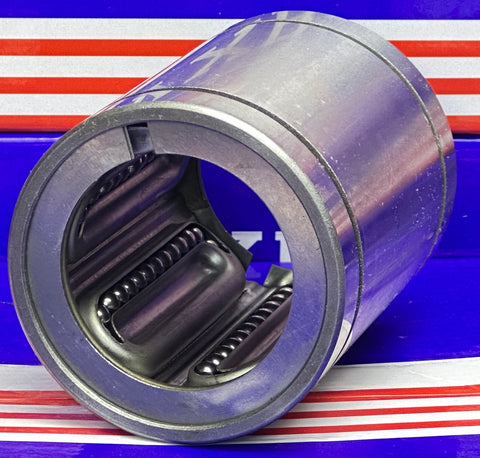

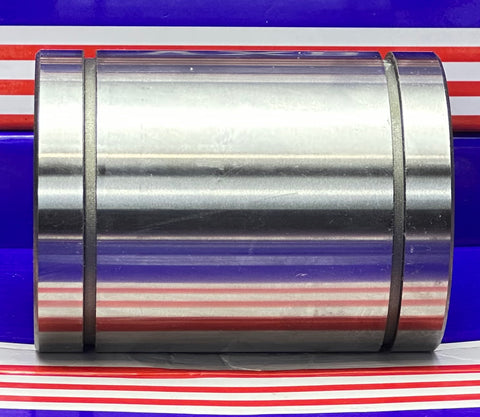

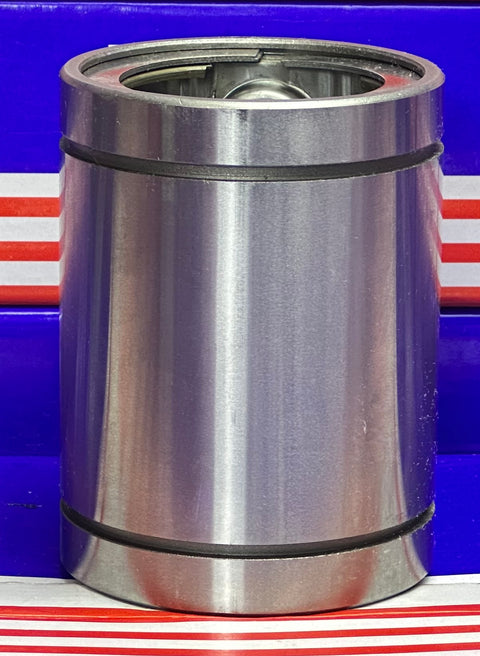

40mm Ball Bushing SDM40GA Steel Retainer Linear Motion Bearings

$73.99
SKU: Kit12754
UPC: 00193019059197
Item: SDM40GA Bearing
Type: Linear Ball Bushing
Ball circuit: 6
Size:40mm x 60mm x 80mm
Bearing Inner Diameter: 40mm
Linear Ball Bushing SDM40GA
Works with 25mm Shafts
40mm x 60mm x 80mm


SDM40GA Linear Ball Bushing works with a 40mm Shafts, the inner Diameter is 40mm, the outer Diameter is 60mm and the Length is 80mm.

  • Item: SDM40GA Bearing
  • Type: Linear Ball Bushing
  • Ball circuit: 6
  • Size:40mm x 60mm x 80mm
  • Bearing Inner Diameter: 40mm
  • Bearing Outer Diameter: 60mm
  • Bearing Width: 80mm
  • Quantity: One Bearing
  • Dynamic Load Rating Cr: 21182 N
  • Static Load Rating Cor: 39422 N


Major dimensions and tolerance (mm)
Eccentricity
d D L B W D1 h1 Precision
(mm)
High
(mm)
mm tolerance mm tolerance mm tolerance mm tolerance
Precision High
40 0-8 0-12 60 0-19 80 0-300 60.5 0-300 2.1 57 3 20 12
