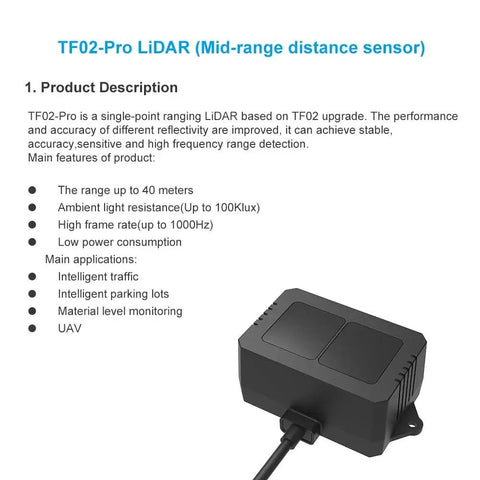

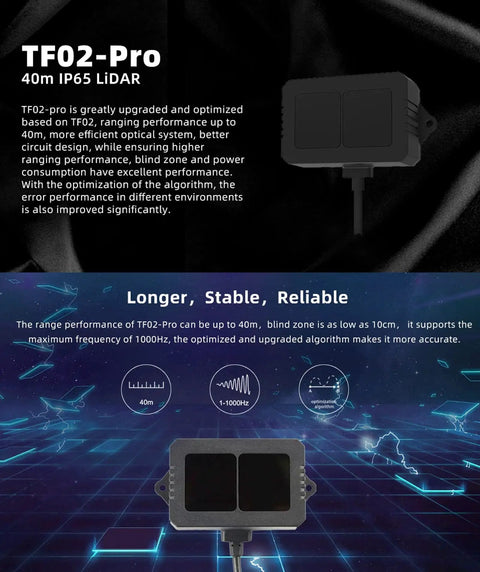

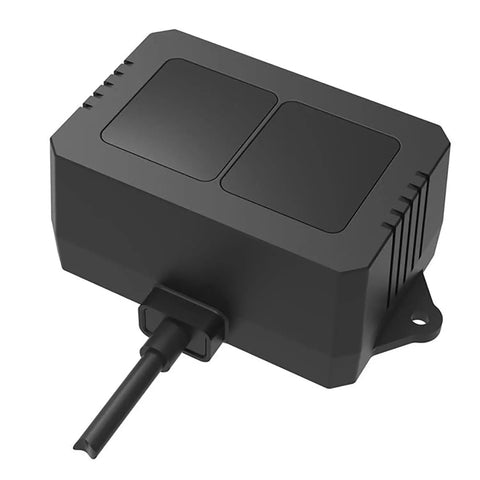

40m TOF Lidar Sensor With IP65 Weatherproof Tough Build For Drones And Robotics Dope 1 cm Resolution 100 Hz Frame Rate Pixhawk UART I2C IO Support High Accuracy Rangefinder For Precise Mapping

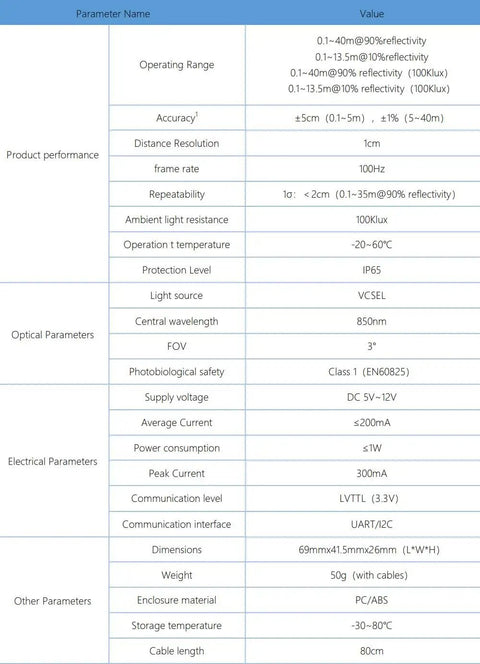

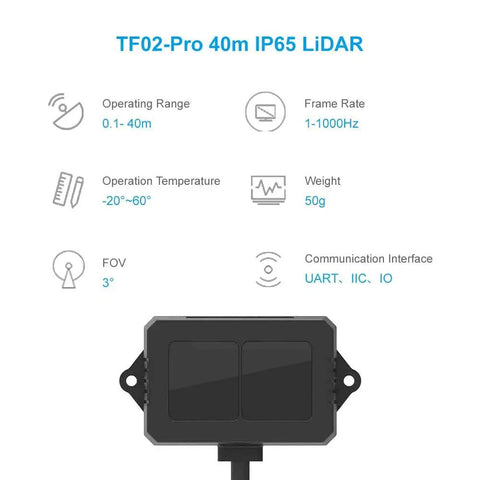

✔️ 0.05-40 m range, 1 cm resolution, 100 Hz frame rate
This high-precision time-of-flight LiDAR sensor delivers distance measurements up to 40 meters and is built for drones and robotics. Its IP65 housing keeps it working in dusty, wet, outdoor environments, making it ideal for mapping, obstacle sensing, and autonomous navigation in field deployments.
✅ Range: 0.05-40 m at 90% reflectivity; 0.05-13.5 m at 10% reflectivity (100 Klux)
✅ Accuracy: ±5 cm (0.05-5 m); ±1% (5-40 m)
✅ Frame rate: 100 Hz; Distance resolution: 1 cm
✅ Interface: UART/I2C/IO (LVTTL 3.3 V); Power: 5-12 V DC, ≤200 mA
✅ Environment: IP65, -20 to 60°C; PC/ABS enclosure

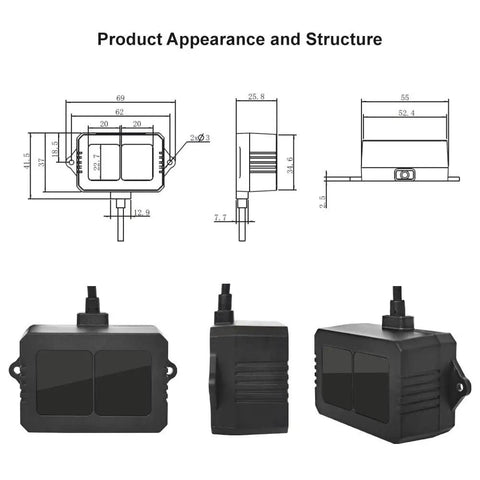

✅ Weight: 50 g (with cables); Cable length 800 mm (31.5 in)
💡 What is a common handy use for a TOF LiDAR sensor in drones and robotics? Real-time distance data improves navigation and obstacle avoidance in outdoor settings.
Used for precise distance sensing and mapping in varying environments.
- distance measurement for obstacle avoidance
- terrain mapping and altitude hold
- easy integration with UART/I2C/IO controllers
