400mm Travel CNC Linear Stage Motion Actuator With X, Y, Z Axis Cross Sliding Table, Beefy 1605 Ballscrew, Dual Limit Switches, And Motor Mount Bracket For CNC Router

400mm Travel CNC Linear Stage with X/Y/Z Cross Slide
✔️ SFU1605 16mm screw, 120kg horizontal load, 50kg vertical

The 400mm Travel CNC Linear Stage is a rugged, multi-axis cross sliding table built for accurate motion on X, Y and Z axes. It’s commonly used in CNC routers, milling machines, laser cutters, and other automation setups where stable, precise movement matters.

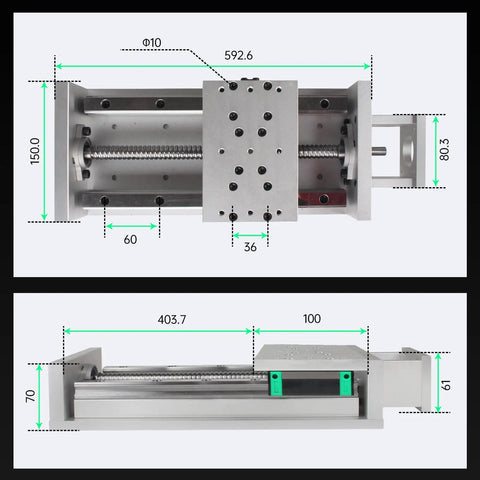

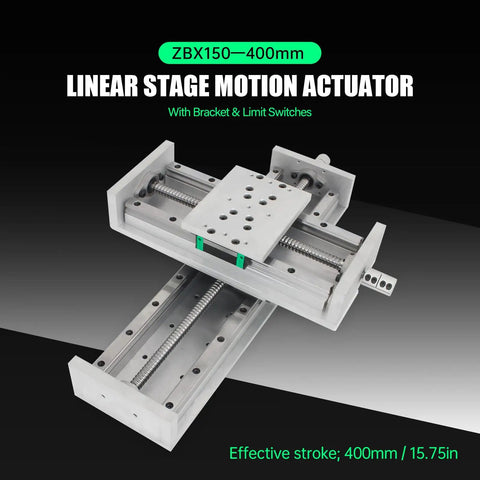

✅ Travel: 400mm effective stroke; width 150mm
✅ Horizontally loadable: 120 kg; vertical carrying: 50 kg
✅ Screw: SFU1605, 16 mm diameter, accuracy up to 0.03 mm

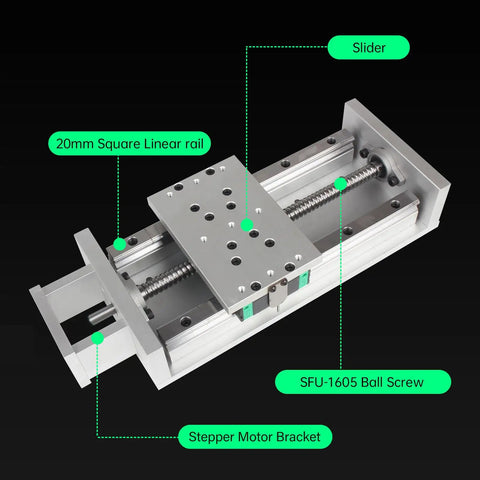

✅ Rail: 20 mm square linear rail, high-speed silent and smooth
✅ Material: aluminum alloy, rust-resistant and durable
✅ Includes: 1x 400mm travel cross slide table, 2x limit switches, 1x motor mount bracket (motor not included)

💡 What is a CNC linear stage used for in precision manufacturing?

This handy device provides accurate multi-axis motion for positioning tools and parts in CNC, milling, turning, and automated setups. - high-precision positioning for CNC routers and milling machines - smooth, repeatable travel with low-friction bearings - quick integration with motor mounts and limit switches - reliable alignment and repeatable part placement
