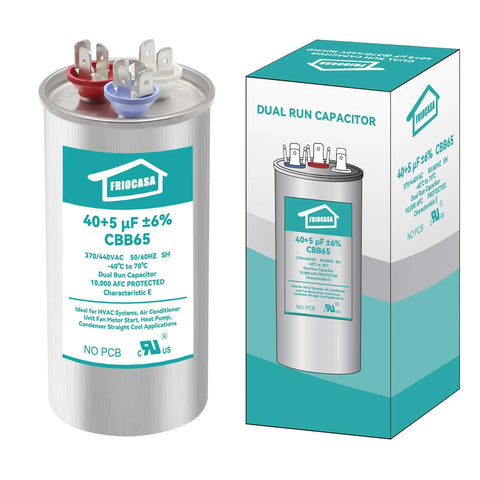

40 Plus 5 MFD AC Run Start Capacitor 370V 440V 50 60Hz CBB65B For Air Conditioner Unit Fan Motor Start Up Pool Pump Or Condenser Replacement High Reliability Durable Build

40+5 MFD AC Run Start Capacitor for 370/440V Systems
✔️ 40/5 MFD ±6% AC capacitor, 370/440V, CBB65B, three terminals

This replaceable 40+5 MFD AC run-start capacitor is used to power and start motors in HVAC equipment like air conditioners, pool pumps, and condensers. It supports 370V and 440V operation and follows the CBB65B standard for compatibility.

✅ 40/5 MFD ±6% tolerance for stable voltage regulation
✅ 370V/440V operation, 50/60Hz compatibility

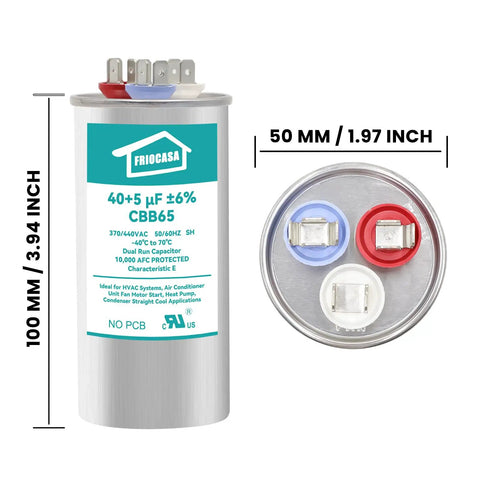

✅ CBB65B package: diameter 50 mm (1.97 in), height 100 mm (3.94 in)

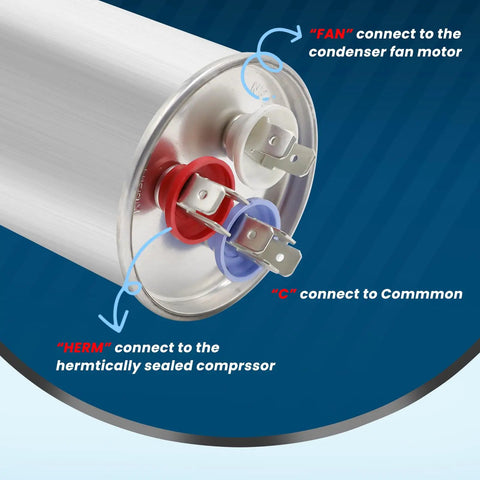

✅ Three top terminals labeled Herm/H, Fan/F, and C for wiring
✅ Operating temp range -40°C to +70°C (-104°F to +158°F)

💡 What is a 40+5 MFD AC run-start capacitor used for in HVAC equipment?

It’s a handy replacement part for starting and running motors in cooling and pumping systems.

- Handy for air conditioners, pool pumps, and condensers using 370/440V 50/60Hz - Provides reliable start torque and voltage regulation for CBB65B capacitors - Three-terminal top connection Herm/H, Fan/F, C for straightforward wiring - Compatible with HVAC units that require 40/5 MFD, ±6% tolerance
