4 Pack Beefed Up Full Metal Gear TS90MD 9g Digital Micro RC Servo 270 Degree Upgrade SG90 Mini Servos Motor For Arduino RC Smart Car Boat Plane DIY Projects PWM 500 2500 Controllable Angle
Regular price
$59.99
Sale price$88.00you save $28.01
4-Pack Full Metal TS90MD 9g RC Servo for DIY Projects
✔️ 270° adjustable micro servo, 4x kit, metal gears, PWM 500-2500μs

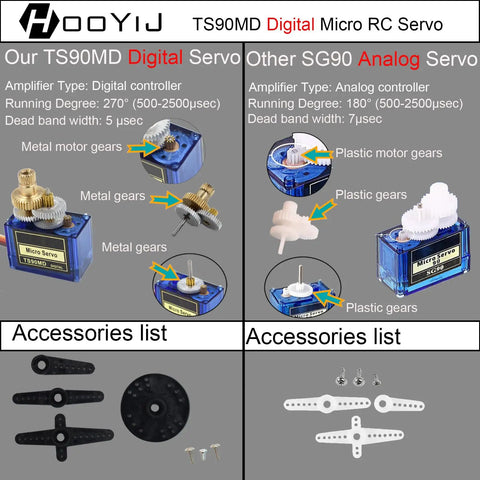

✅ Full metal gears for durability and torque

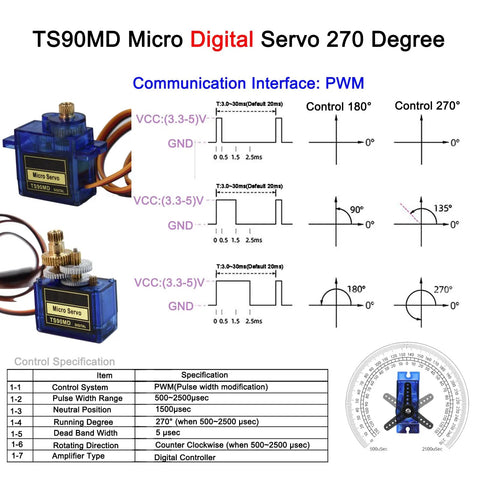

✅ 270° running range with PWM control 500-2500 μs

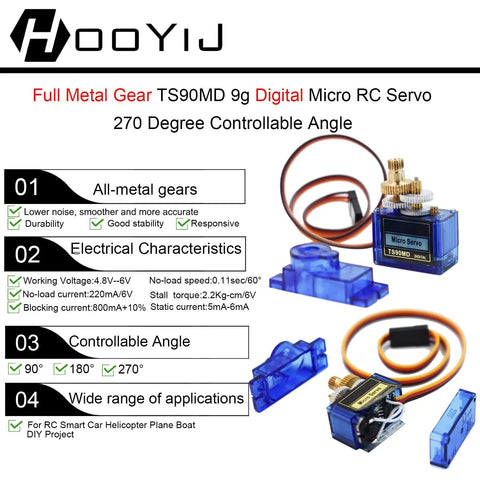

✅ Operating voltage 4.8-6.0 V; stall torque 2.2 kg.cm
✅ Cable length 250 mm; 20T horn; plastic horn

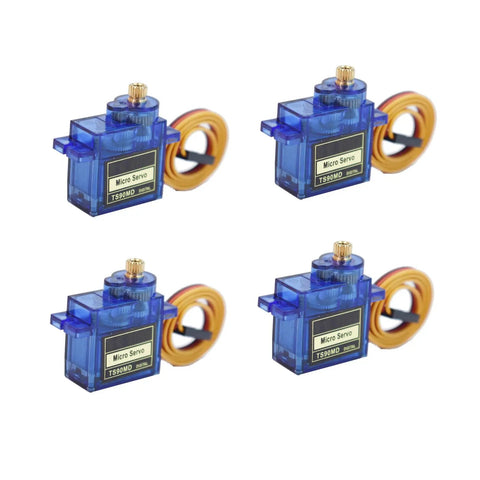

✅ Pack includes 4 servos and 4 accessory sets
- Drive a robotic gripper or finger mechanism with accurate positions
- Integrate with microcontrollers like Arduino for automated levers and latches
- Improve motion reliability in compact builds with durable metal gears
✔️ 270° adjustable micro servo, 4x kit, metal gears, PWM 500-2500μs
Compact, high-performance micro servo with full metal gears designed for Arduino projects, RC planes, boats, cars, and small robots. It delivers strong torque, smooth motion, and long life in tight spaces.

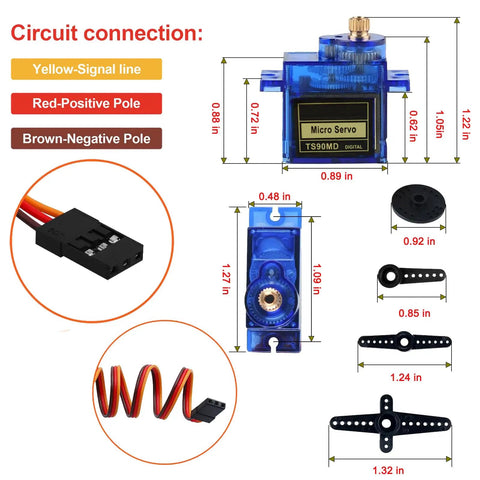

✅ Size: 22.7 x 12.2 x 26.8 mm; weight 13.5 g✅ Full metal gears for durability and torque
✅ 270° running range with PWM control 500-2500 μs
✅ Operating voltage 4.8-6.0 V; stall torque 2.2 kg.cm
✅ Cable length 250 mm; 20T horn; plastic horn
✅ Pack includes 4 servos and 4 accessory sets
| Dimension | Millimeters | Inches |
|---|---|---|
| Size (L x W x H) | 22.7 x 12.2 x 26.8 | 0.89 x 0.48 x 1.05 |
| Weight | 13.5 g | 0.48 oz |
| Horn spline | 20T | 20T |
💡 What is a handy use for a small RC servo in hobby projects?
- Handy for precise steering and control surfaces on micro aircraft or RC cars- Drive a robotic gripper or finger mechanism with accurate positions
- Integrate with microcontrollers like Arduino for automated levers and latches
- Improve motion reliability in compact builds with durable metal gears
