4 Inch Stroke Ball Screw Slide Table With Beefy Double Rail Linear Actuator 100mm Travel 110 Lb Load High Precision C7 Level Accuracy For Nema17 Nema23 Stepper Motors 20 Inches Per Second Top Speed

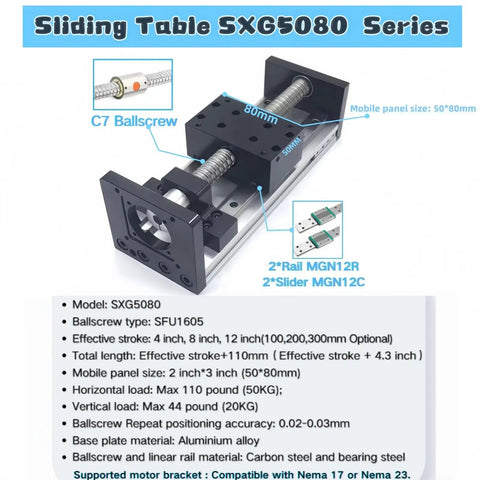

4-Inch Stroke Ball Screw Slide Table: 1 Pc Dual Rail ✔️ 100 mm travel, 110 lb load, SFU1605 screw, NEMA17/23

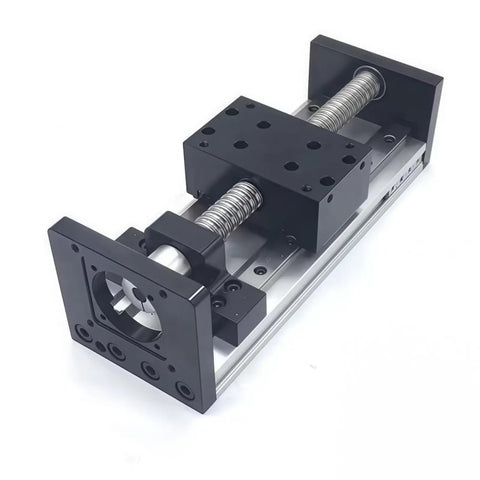

This motor-ready slide table delivers precise linear motion with a 100 mm stroke and beefy dual-rail guidance. Built around SFU1605 ball screw and MGN12R rails for smooth operation, it’s ideal for CNC, laser cutting, and automation projects requiring rigid, repeatable positioning.

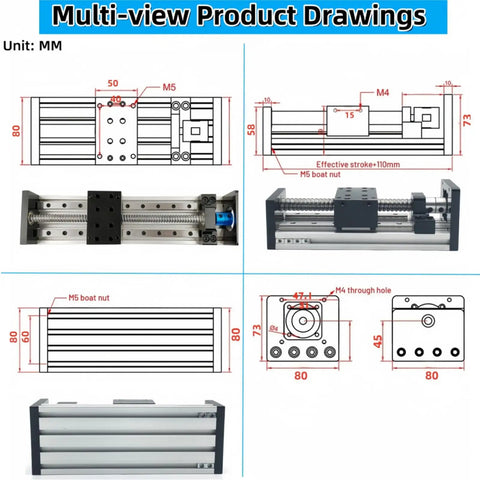

✅ Stroke: 100 mm, total length 210 mm (8.26 in); work panel 50x80 mm
✅ Ball screw SFU1605, C7 accuracy, repeatability 0.02-0.03 mm
✅ Dual MGN12R rails with 2 MGN12H sliders for rigidity
✅ Horizontal load up to 110 lb (50 kg); vertical up to 66 lb (30 kg); max speed 500 mm/s
✅ Compatible with NEMA17 and NEMA23 motors via three couplings (0.25" shaft, 0.315" shaft for NEMA23; 0.2" shaft for NEMA17)

💡 What is a ball screw slide table used for in precision CNC tasks? This setup delivers precise linear motion with rigid dual-rail guidance, ideal for automation. - High-precision SFU1605 ball screw with C7 tolerance for repeatable positioning. - Dual MGN12R rails reduce vibration and improve load stability. - Compatible with NEMA17 and NEMA23 motors for flexible setups. - 100 mm stroke fits compact CNC and automation layouts.

✝️
