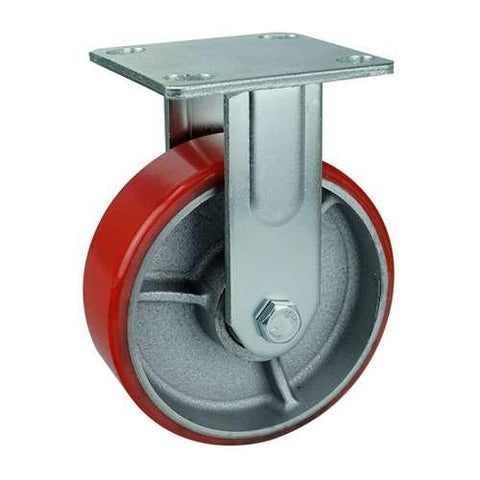

4" Inch Heavy Duty Caster Wheel 705 pounds Fixed Iron core and Polyurethane Top Plate

$159.99
SKU: VXB005100CPUF
Wheel Diameter= 4" Inch" inch=100mm
Load Capacity=705 lb
Mounting Type= Top Plate
Mounting= Fixed
Tire= Iron core and Polyurethane
4" Inch Caster Wheel 705 pounds Fixed Iron core and Polyurethane Top Plate
  • Item Name= VXB005100CPUF
  • Heavy Duty
  • Wheel Diameter= 100mm
  • Wheel Width= 50mm
  • Wheel Diameter= 4" Inch = 100mm
  • Overall Height= 145mm
  • Overall Height Inch= 5.709"
  • Mounting Type= Top Plate
  • Top Plate Size= 100mm x 115mm
  • Hole distance= 75mm x 85mm
  • Wheel Core= Iron core and Polyurethane
  • Tire= Iron core and Polyurethane
  • Bearing type= Double ball beaing
  • Load Capacity= 705 lb
  • Mounting= Fixed
  • Temperature Range= -40 to 180 F

  • Mounting VXB005100CPUF is the Low cost solution of making a project to move around by pushing or pulling. Diameter size of the caster wheel has a metric standard 100mm which is equal to 3.937" inch with imperial units. The wheel has a width of 50mm=1.969" inch. Overall height of the wheel caster is 145mm = 5.709" inch. Top Plate is the method of installing the caster to your equipment, here are the dimensions 100mm x 115mm with the holes distance of 75mm x 85mm. The weehl core material is Iron core and Polyurethane and has a Iron core and Polyurethane tire with a low friction Double ball beaing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 705 lb with a Fixed type. Environment temperature range is -40 to 180 F. Buy the VXB005100CPUF now, just add the quantity to basket and click on Checkout.
