VXB

4 Female Rod End 20mm PHS20 2 Right Hand and 2 Left Hand Bearing

$98.99
SKU: Kit252
UPC: 00193019066027
Item: PHS-20 Bearing
Type: Female Rod End Bearing
Basic Dynamic Load Rating: 3,140 KGF
Basic Static Load Rating: 3,620 KGF
Quantity: Four

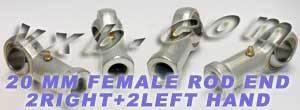

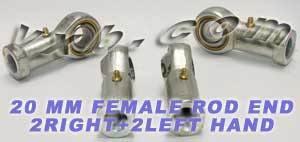

4 Female Rod End"PHS-20"
2 Right Hand and 2 Left Hand

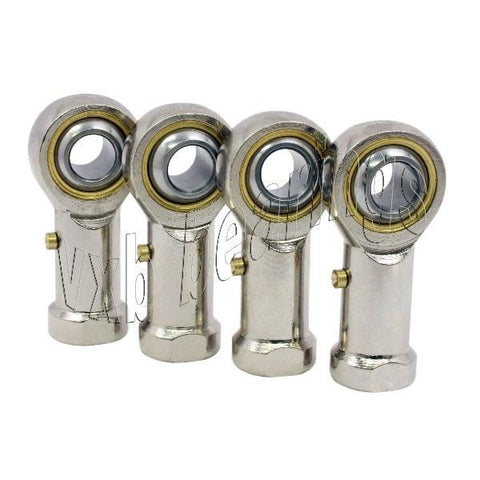

4 Pieces Female Rod End PHS-20 Work with 20mm Shafts, bearings are 2 right hand and 2 left hand, inner diameter is 20mm (0.787" inch), the internal thread size is M20x1.5, Here is the interchange designation in every brand:

  • Item: PHS-20 Bearing
  • Type: Female Rod End Bearing
  • Basic Dynamic Load Rating: 3,140 KGF
  • Basic Static Load Rating: 3,620 KGF
  • Quantity: Four
  • IKO: PHS 20 Bearings
  • ELGES: GIKFR 20 PB
  • Equal: SIKAC 20 M
  • HIRSCHMANN: SF 20

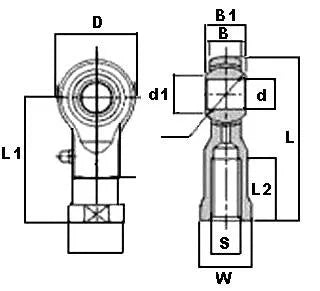

Dimensions (mm)
d Thread
S
D B B1 d1 L L1 L2 W
20 M20x1.5 46 18 25 24.4 100 77 40 30
