4 Channel Mixed Signal Oscilloscope With 100 MHz Bandwidth, 12 Bit Resolution, Up To 2 GSa Per Second Sample Rate, 100 Mpts Memory, 500000 Waveforms Per Second Capture, Pro Grade Triggers And Decoding, Powerful Math Functions For Debugging
✔️ 4-channel MSO, 100 MHz BW, 12-bit ADC, 2 GSa/s, single unit

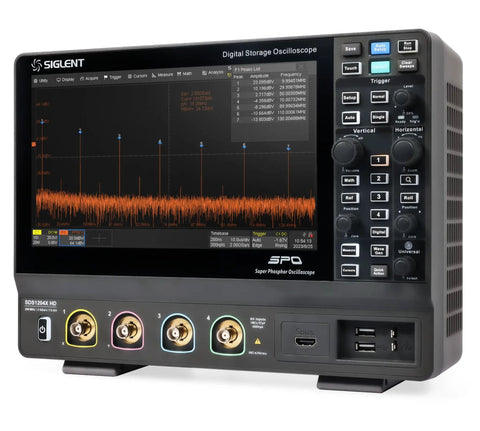

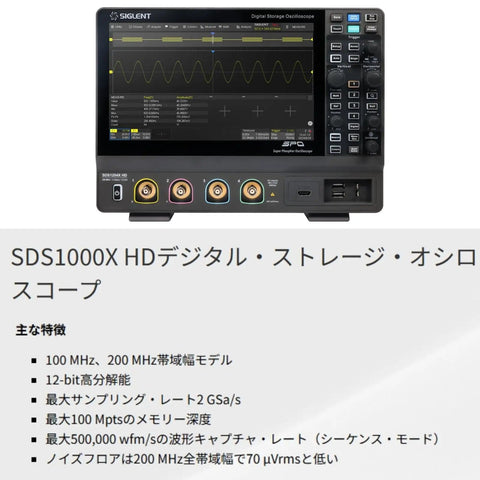

This four-channel mixed-signal oscilloscope is built for lab benches and engineering workstations, delivering precise analog measurements alongside digital signal analysis. It supports 4 analog channels and optional 16 digital channels for mixed-signal debugging. Weight 9.8 lbs (4.1 kg); Dimensions 12.5 x 9.3 x 5.9 in (317 x 236 x 149 mm). Includes power cable, USB cable, probe, calibration certificate, Quick Start guide.

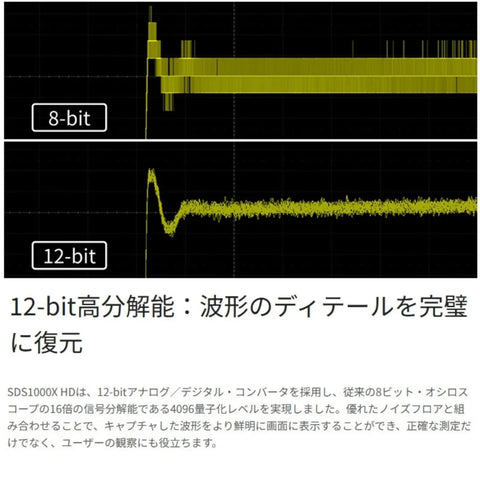

✅ Per-channel bandwidth: 100 MHz; total bandwidth: 200 MHz✅ 12-bit vertical resolution for clear signal details
✅ Up to 2 GSa/s sample rate for fast events

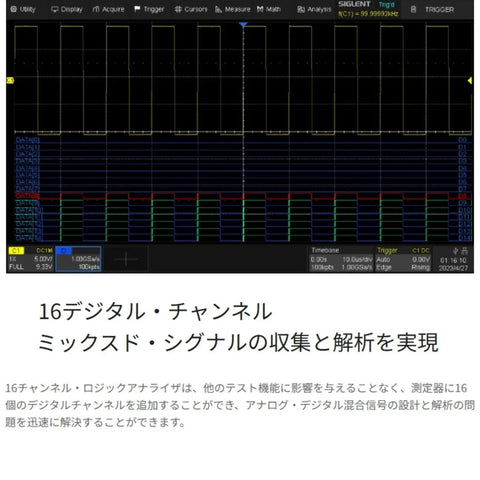

✅ 4 analog channels with optional 16 digital channels
✅ 100 Mpts memory for long captures
✅ 500,000 waveform/s capture rate for busy signals
✅ Pro-grade triggers and decoding for serial data
✅ Built-in math functions for debugging and analysis
✅ 3-year standard warranty included
💡 What is a mixed-signal oscilloscope used for in electronics testing? This handy tool helps engineers observe how analog and digital signals relate in real time.
- Analyze timing between channels

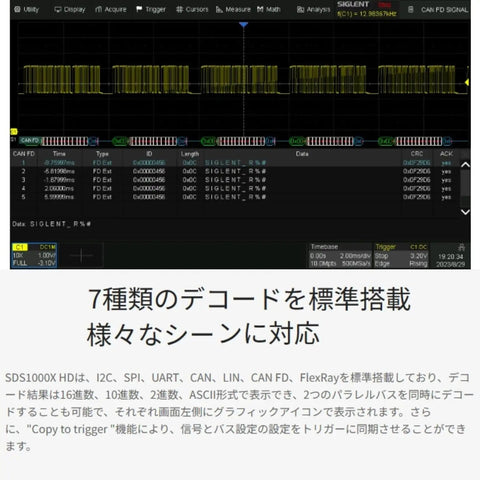

- Decode serial protocols to verify data integrity

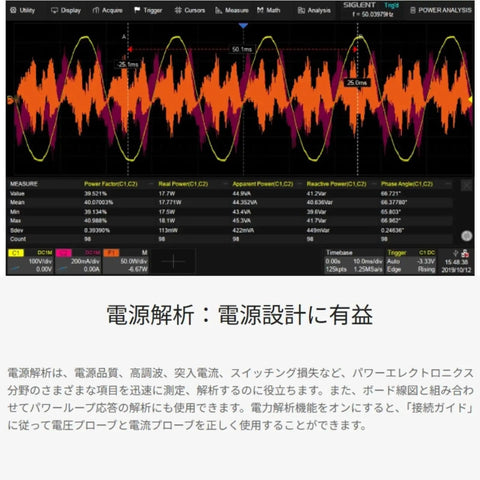

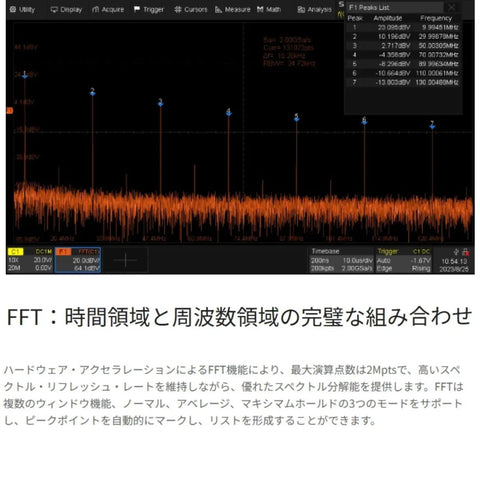

- Perform power analysis and FFT for frequency domain insights
- Capture long waveform sequences to catch rare events
