4 Axis Manual Linear Stage 90x90mm Micro Positioning Sliding Table For CNC Engraving And Laboratory Alignment Aluminum Alloy Cross Roller Bearing Platform Delivers Precise X Y Z And R Axis Motion

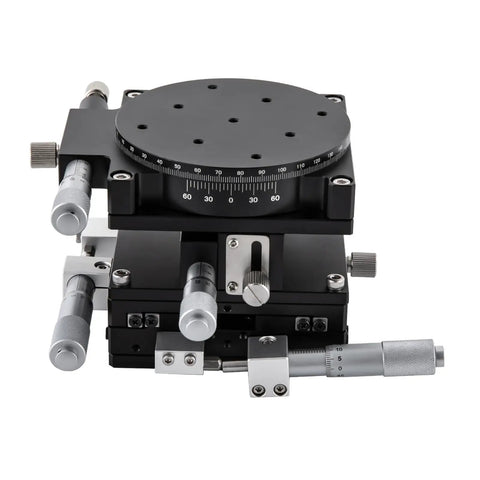

Compact 4-Axis Manual Linear Stage with single unit

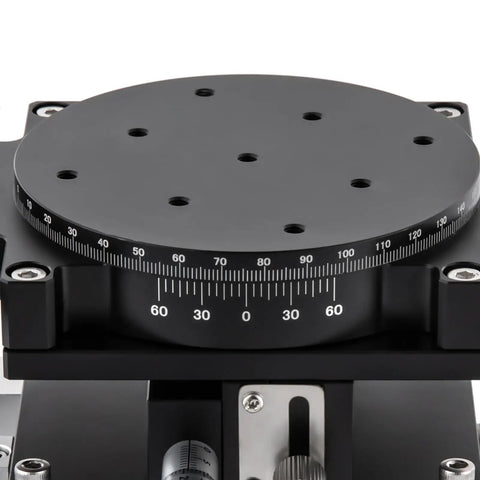

✔️ 0.01 mm resolution on X Y Z and 360° R rotation (footprint 6.37 x 5.42 in)

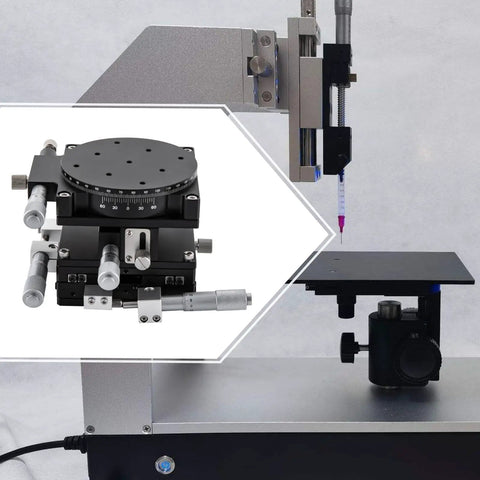

This compact 4-axis manual linear stage is built from aluminum alloy for rigidity and long life. It's ideal for CNC engraving, optical alignment, and precision lab positioning on benches or optical tables.

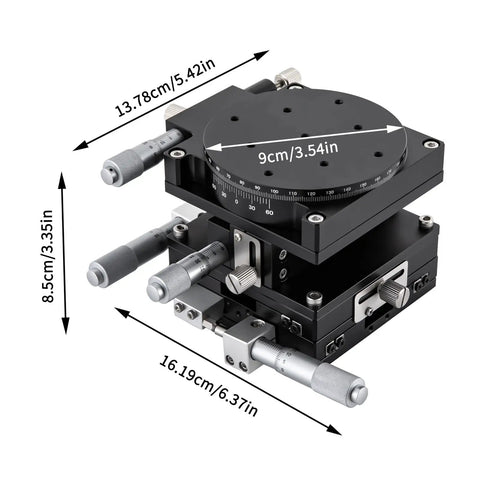

✅ Travel: XY ±12.5 mm (±0.49 in), Z 10 mm (0.39 in), R axis 360° (±5°) ✅ Resolution: 0.01 mm/0.00039 in across X, Y, Z ✅ Material & finish: aluminum alloy with oxidation finish for rigidity ✅ Footprint: 6.37 x 5.42 x 3.35 in (161.8 x 137.5 x 85.1 mm); weight 2 kg (4.4 lbs) ✅ Locking screw for surface stability and rounded corners for safe handling

💡 What is a manual linear stage used for in precision alignment and machining?

A handy tool for precise, repeatable positioning in labs and workshops.

- For X, Y, Z alignment on optical benches, CNC rigs, and inspection stations - For micro-adjustments with 0.01 mm resolution and smooth cross-roller travel - For desktop setups in space-constrained environments
