4 Axis CNC Stepper Driver NV5160T4 With Pulse And Direction Control For Nema 23 24 And 34 Motors, 12 To 48 Volt DC, Max 6 Amp, 256 Micro Steps, Compact Low Heat, High Anti Interference, Bang For Buck RATTMMOTOR

4-Axis CNC Stepper Driver NV5160T4 with Pulse Control
✔️ 12-48VDC, up to 6A per channel, 256 micro-steps, 1MHz

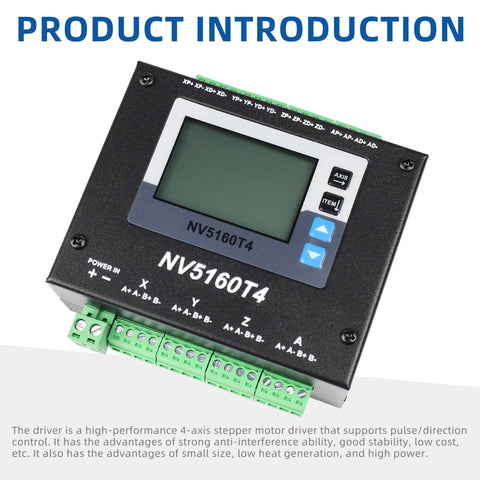

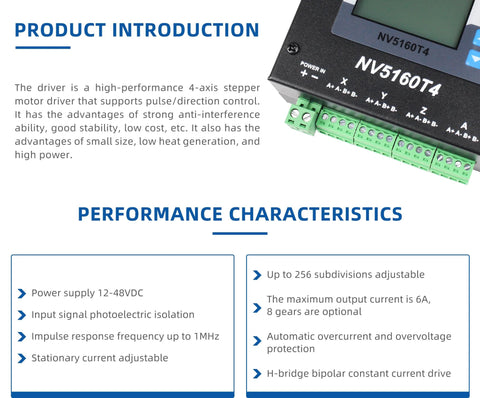

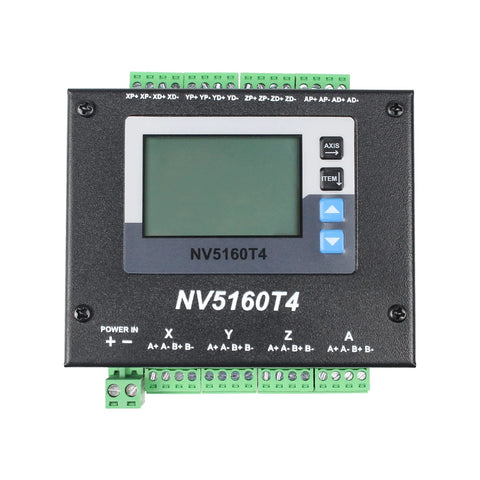

The NV5160T4 is a compact 4-axis driver that accepts pulse and direction inputs to control multiple stepper motors in CNC machines. It's designed for tight spaces, providing solid performance with low heat and strong anti-interference capability for reliable operation.

✅ 12-48VDC input with auto over-current/over-voltage protection
✅ 6A max current per channel; external cooling can help achieve full rating
✅ 256 micro-step subdivisions; 1MHz pulse rate for precise motion

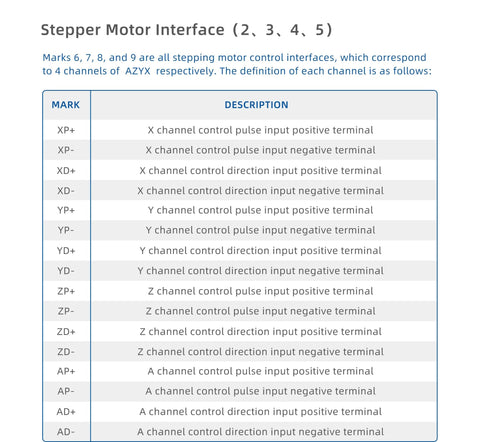

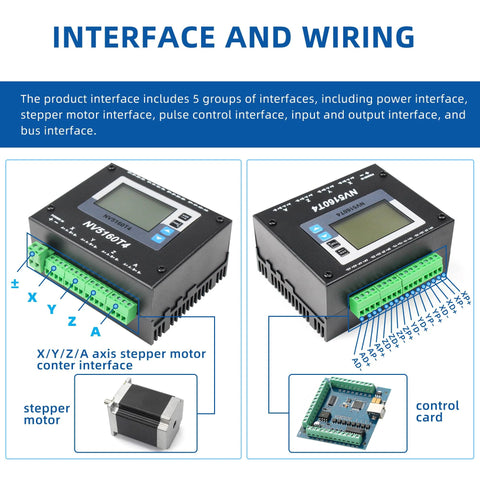

✅ Five interface groups: power, motor, pulse, IO, bus

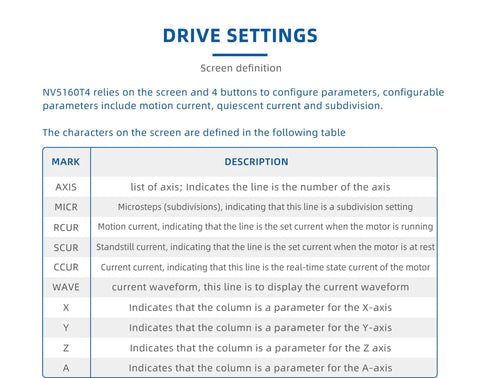

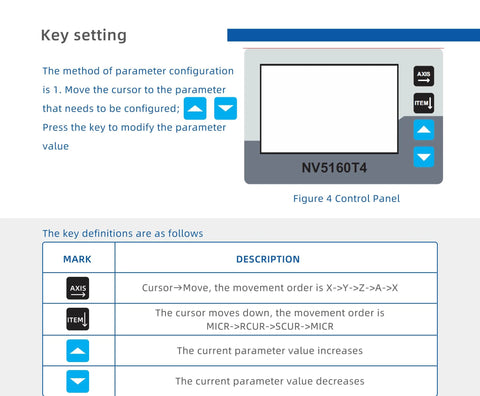

✅ Configurable motion current, quiescent current, and subdivision via on-board controls

💡 What is a 4-Axis CNC stepper driver with pulse and direction control used for?

It powers and coordinates multiple stepper motors in CNC setups, delivering precise motion from pulse-direction signals.

- Handy for running multiple axes in milling, engraving, or routing projects - Supports fine micro-step control for smooth, accurate movement - Includes protective features like over-current and over-voltage protection
