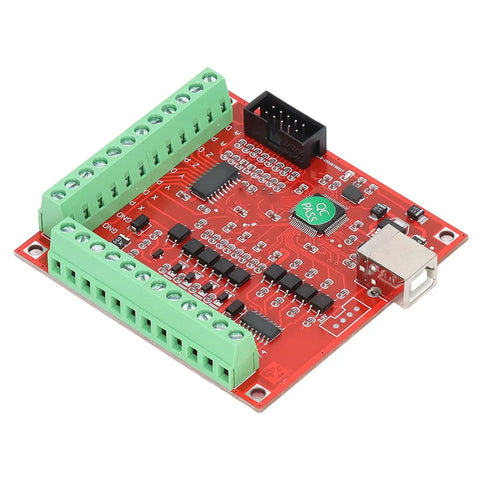

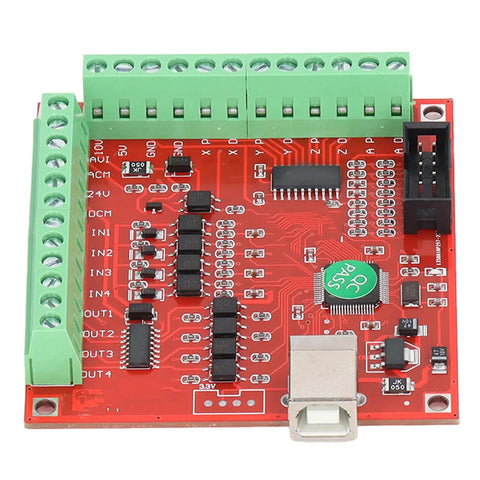

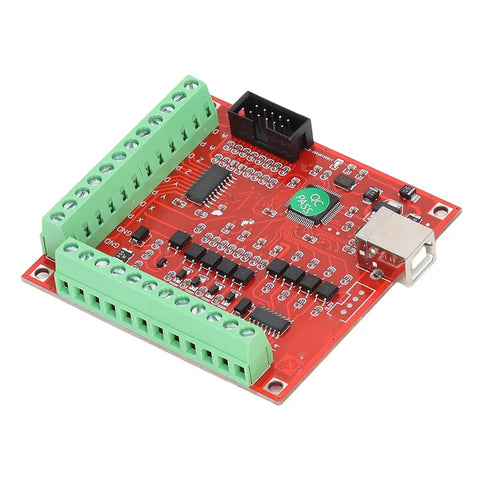

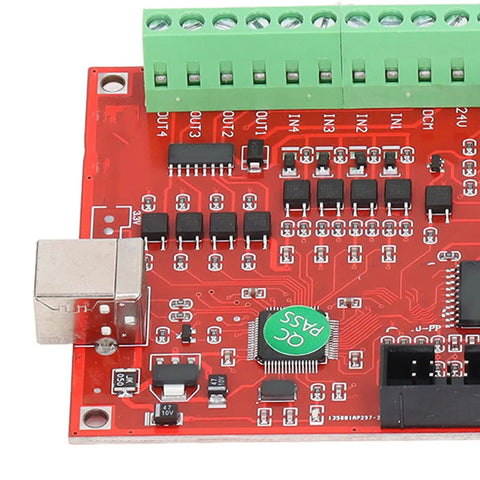

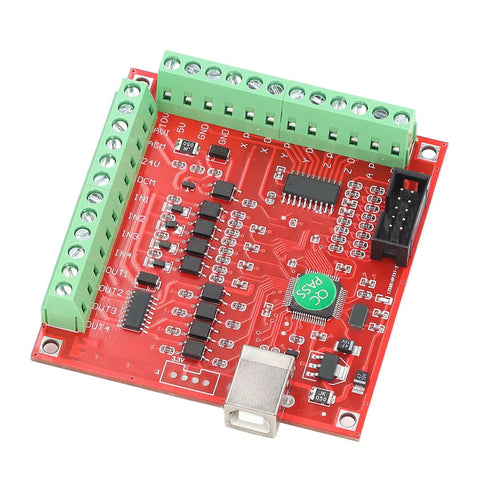

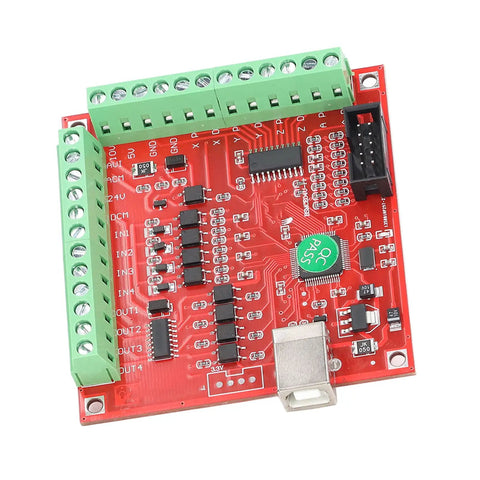

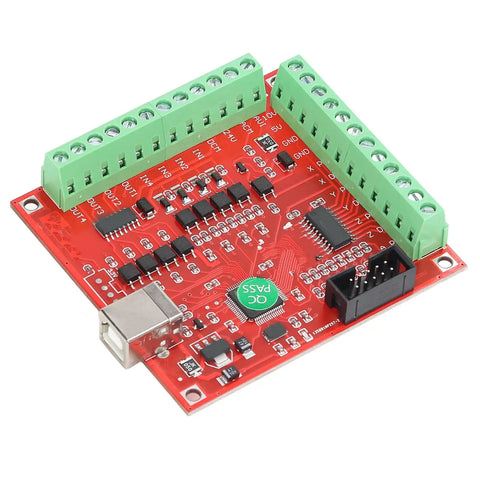

4 Axis CNC Breakout Board Motion Controller Card With 100KHz Step Pulse Frequency USB Interface For Stepper And Servo Motors Dope Performance Supports Probes Emergency Input Limit Switches And Handwheel Manual Control
The four-axis motion controller card serves as the brain of CNC systems, offering USB connectivity and robust multi-axis control. It supports automatic probe operation, emergency input, and limit switches, while enabling precise manual control through a handwheel. This unit is commonly used in CNC engraving, milling, and automation projects.
✅ 4-drive USB interface supports up to four stepper or servo motors
✅ 4 universal input ports for limit switches, emergency stops, probes, and home devices
✅ External 24V DC power supply isolates USB and external ports for stability
✅ Built-in 0-10V output enables software spindle speed control
✅ 4 isolated relay outputs drive spindle, coolant, and other equipment
💡 What is a CNC breakout board motion controller used for in 4-axis setups? It's handy for coordinating multi-motor automation in CNC and automation projects.
- It enables control of up to four motors via USB
- It integrates limit switches, probes, emergency stops, and handwheel interfaces
- It provides high-speed 100kHz pulse frequency for precise motion
- It includes 24V power isolation and 0-10V spindle control
