VXB

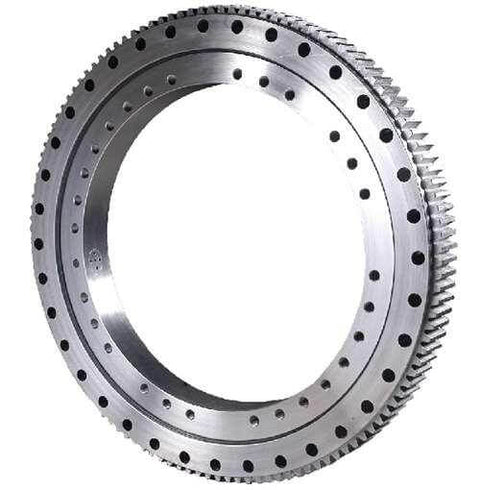

39 Inch Four-Point Contact 998x1242x100 mm Ball Slewing Ring Bearing with Outside Gear
$9,473.99
SKU: VXB11401120001-SLEWING-BEARING
UPC: 00193019334843
UPC: 00193019334843
Type: Slewing Ring Bearing
Single row bearings
Inner Diameter : 998mm
Outer Diameter : 1242mm
Width: 100
Shipping 30-60 Days.
Single row bearings
Inner Diameter : 998mm
Outer Diameter : 1242mm
Width: 100
39 Inch Four-Point Contact 998x1242x100 mm Ball Slewing Ring Bearing with Outside Gear
| Four-Point Contact Ball Slewing Bearing with Outside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB11401120001 | 1298 | 1242 | 998 | 100 | 1198 | 1042 | 36 | 22 | 20 | 6 | 1121 | 1118 | 90 | 10 | 80 | 10 | 127 | 0.5 | 0.9 | 100 | 140 |
