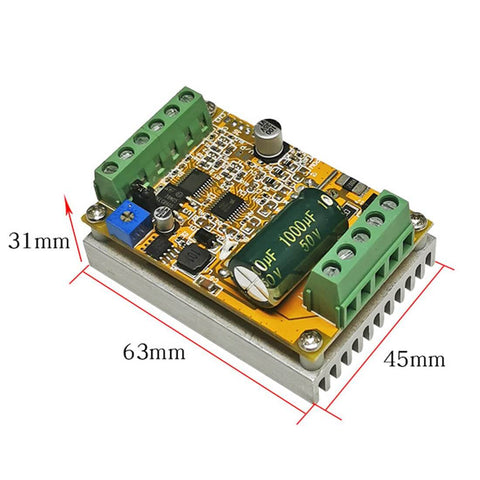

380W Three-Phase DC Brushless Motor Speed Controller Sensorless Hall-Less PWM 6.5 To 50V With Terminal Blocks, Stable Performance, 16A Drive Current (30A Peak), High Power Electric Motor Controller For DIY Robotics And EV Projects
✔️ 16A rated drive current, 30A peak, 380W output, terminal blocks
This high-power DC brushless speed controller handles 6.5-50V systems and outputs up to 380W. With terminal-block interfaces and sensorless 3-phase control, it's perfect for DIY robotics, EV hobby projects, and CNC or track automation.
✅ Voltage range: 6.5-50V DC
✅ Rated drive current: 16A, 30A peak with cooling
✅ Max power output: 380W
✅ 3-phase UVW outputs, sensorless control

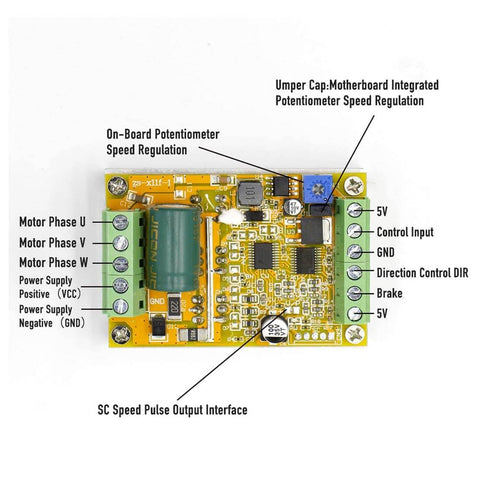

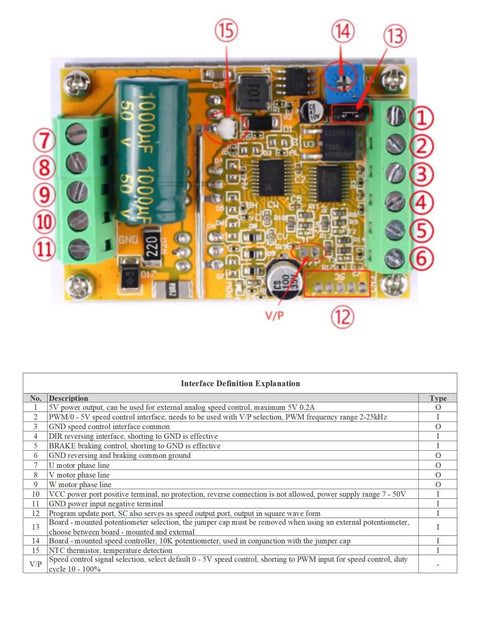

✅ Terminal-block interface for wiring: 5V GND, VCC GND, SC, DIR, BRAKE, PWM input
✅ External fuse recommended for overcurrent protection; locked-rotor protection
✅ Over-temperature protection at 100°C, power halved when triggered
✅ Includes 1x controller
💡 What is a brushless motor controller used for in hobby projects?
A handy device to manage speed, direction, and protection for BLDC motors in DIY robotics and EV builds.
- 6.5-50V input range for flexible power setups
- 3-phase sensorless operation reduces wiring complexity
- PWM and 0-5V input options for versatile throttle control
- Built-in protections extend motor life and ensure safe tests
