VXB

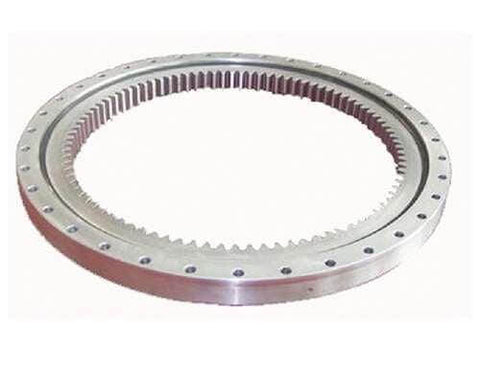

37 Inch Four-Point Contact 930x1169x63 mm Ball Slewing Ring Bearing with inside Gear
$4,177.99
SKU: VXB13251077401-SLEWING-BEARING
UPC: 00193019334904
UPC: 00193019334904
Type: Slewing Ring Bearing
Single row bearings
Inner Diameter : 930mm
Outer Diameter : 1169mm
Width: 63
Shipping 30-60 Days.
Single row bearings
Inner Diameter : 930mm
Outer Diameter : 1169mm
Width: 63
37 Inch Four-Point Contact 930x1169x63 mm Ball Slewing Ring Bearing with inside Gear
| Four-Point Contact Ball Slewing Bearing with inside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB13251077401 | 930 | 1169 | 930 | 63 | 1134 | 1017 | 36 | 18 | 16 | 6 | 1078 | 1076 | 54 | 9 | 54 | 10 | 94 | 0.5 | 1 | 68 | 104 |
