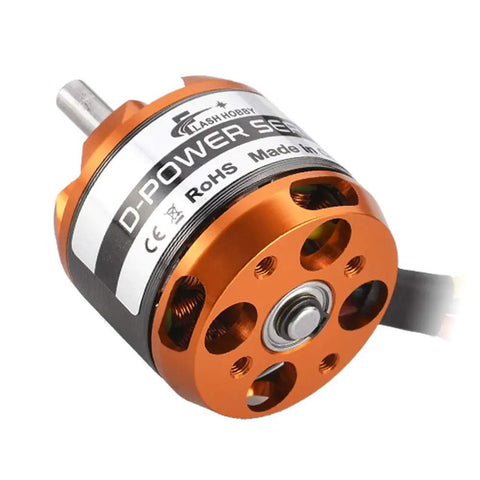

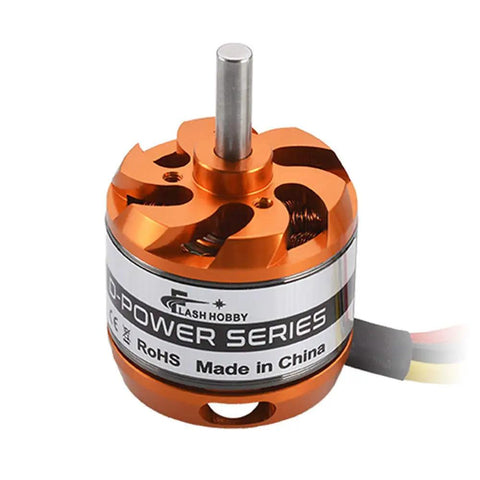

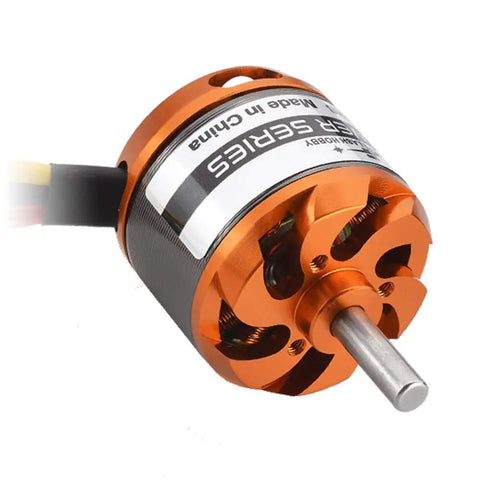

3536 Brushless Outrunner Motor 1250KV For RC Planes Quads Helicopters Drones And Robotic Arms Beefed Up Lightweight Low Noise High Torque Efficient Copper Windings Great Thrust For 10 Inch Frame Builds
✔️ 35x36mm body, 1250KV, 7.4-15V, 2-4S LiPo compatible

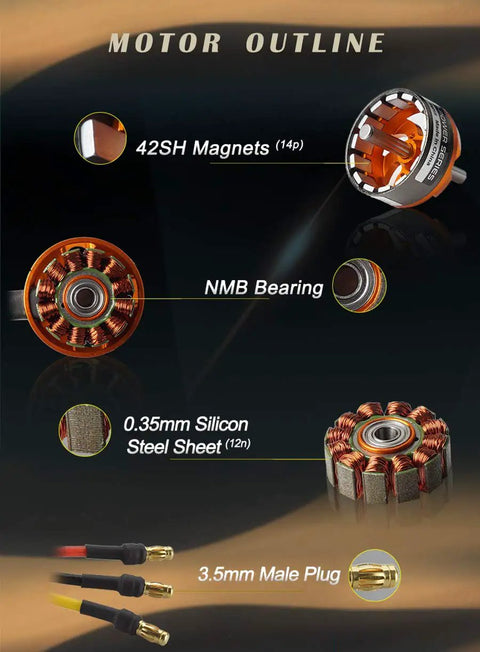

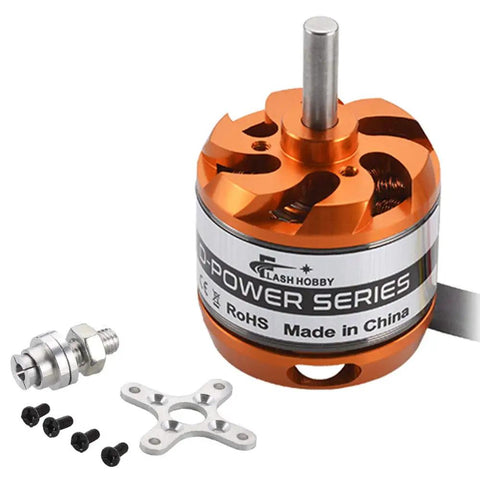

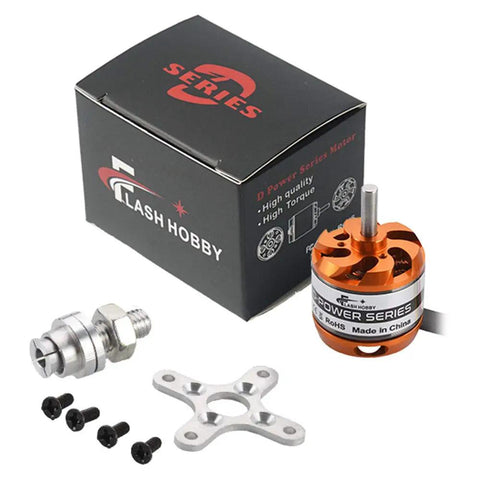

Compact D3536 brushless outrunner motor designed for high-torque, lightweight RC builds. Ideal for 10-inch frame quads, RC planes, helicopters, drones, and robotic arms. It features high-purity copper windings for efficiency, a CNC aluminum bell, and NMB bearings for heat resistance and reliability. Package includes one motor and essential accessories.
✅ Weight: 102g
✅ Motor Size: 35 x 36mm
✅ Shaft Size: 5.0 x 53.5mm
✅ Mount: 16 x 19mm (M3*4)
✅ Working Temperature Range: -0°C~+80°C
✅ Max pull: 1380g (1450KV), 1270g (1250KV), 1160g (1000KV), 1050g (910KV), 850g (750KV)
✅ Max Power: 655W (1450KV), 496W (1250KV), 432W (1000KV), 370W (910KV), 739.1W (750KV)
✅ Suggested Prop: 9 inch (1450KV); 10 inch (1250KV, 1000KV); 11 inch (910KV); 13 x 8 inch (750KV)
💡 What is a D3536 1250KV brushless outrunner motor best used for in RC and robotics?
This handy motor is built for lightweight, high-torque needs in compact builds like 10-inch frame quads, RC planes, helicopters, and robotic arms.
- Used to drive props on RC planes, quads, helicopters, and small robots. - Delivers high torque and efficiency thanks to copper windings and precise rotor balance. - Pairs with the right ESC and LiPo power for smooth, reliable performance. ✝️
