VXB

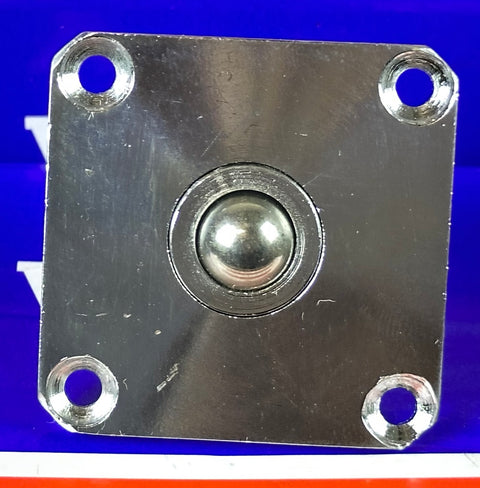

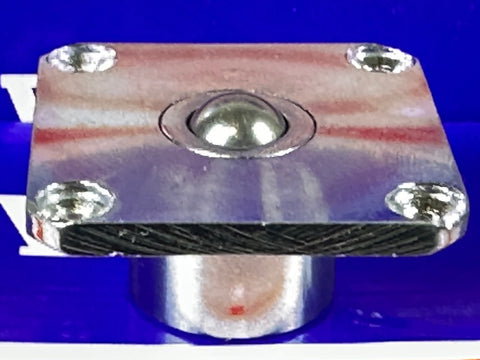

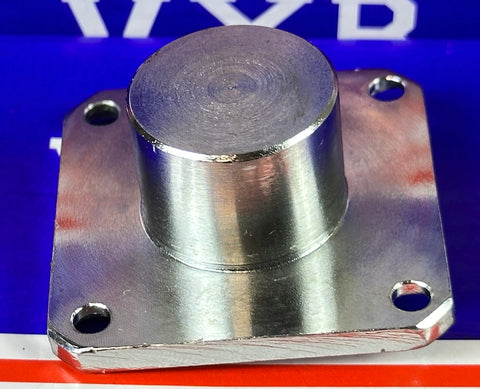

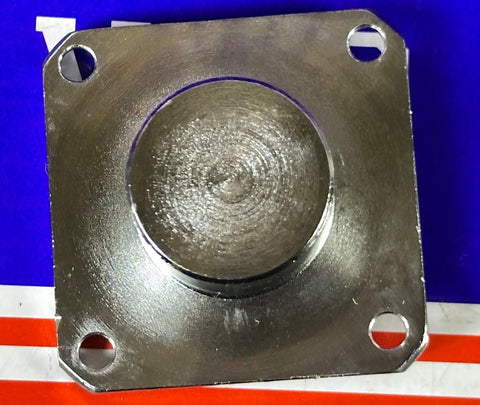

33 lbs Load Capacity Flange Ball Transfer Bearing Unit

$39.99
SKU: 33LBS-BALL-TRANSFER-FL
UPC: 00193019145913
Item: 33 lbs Flange Ball Unit Bearing
Type: Flange Ball Transfer unit
Ball Material: Chrome Plated
Load Capacity: 33 lbs
Breaking load: 44 lbs
33 lbs Load Capacity Flange Ball Transfer Bearing Unit



Loading
Capacity
(lbs)
Breaking
Loading
(lbs)
d D H h1 h2 P L Weight
(lbs)
33 44 12mm 24mm 42mm 3mm 17mm 35mm 45mm
.05
Dimensions in inch 0.472" 0.94" 1.65" 0.118" 0.669" 1.4" 1.77"

  • Item: 33 lbs Ball Unit
  • Type: Flanged Ball Transfer Unit
  • Ball Material: Chrome plated
  • Support Ball: Chrome Plated
  • Load Capacity: 33 LBS
  • Breaking Load: 44 LBS
  • Quantity: One Bearing
  • Solid Machined and Steel
  • Plated steel cover
  • Ball support cup is machined from solid steel and is hardened and plated for longevity
