VXB
31 Inch Four-Point Contact 778x1022x100 mm Ball Slewing Ring Bearing with inside Gear
$7,510.99
SKU: VXB01340900001-SLEWING-BEARING
UPC: 00193019334584
UPC: 00193019334584
Type: Slewing Ring Bearing
Single row bearings
Inner Diameter : 778mm
Outer Diameter : 1022mm
Width: 100
Shipping 30-60 Days.
Single row bearings
Inner Diameter : 778mm
Outer Diameter : 1022mm
Width: 100

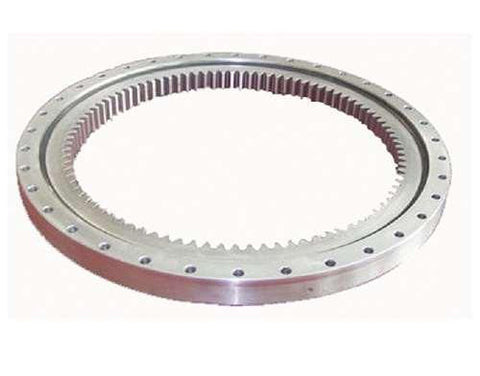

31 Inch Four-Point Contact 778x1022x100 mm Ball Slewing Ring Bearing with inside Gear
| Four-Point Contact Ball Slewing Bearing with inside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB01340900001 | 739.2 | 1022 | 778 | 100 | 978 | 822 | 30 | 22 | 20 | 6 | 901 | 898 | 90 | 10 | 80 | 8 | 93 | 0.5 | 0.8 | 80 | 111 |
