VXB
30mm Bearing HCFL206 2 Bolts Flanged Cast Housing Mounted Bearing with Eccentric Collar
$45.99
SKU: HCFL206
UPC: 00193019200131
UPC: 00193019200131
Item: HCFL206
Type: Mounted Bearing with Eccentric Collar
Bolt Size: M10
Basic Load Dynamic (Cr): 19,500 N
Basic Load Static (Cor): 11,300 N
Type: Mounted Bearing with Eccentric Collar
Bolt Size: M10
Basic Load Dynamic (Cr): 19,500 N
Basic Load Static (Cor): 11,300 N
| HCFL206 Mounted Bearing with Eccentric Collar 30mm Inner Diameter One Bearing |
HCFL206 Mounted bearing. The inner diameter is 30mm.
|

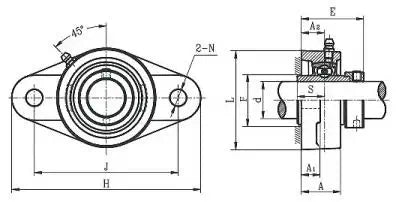

| Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 30mm | 148 | 117 | 16 | 31 | 13 | 18.3 | 48.3 | 80 | 18 | ||
